Premium Flex

From: 29,74

Liqcreate Premium Flex is a translucent turquoise blue photopolymer with great processability and print speed on MSLA and DLP based 3D-printers. 3D-printed parts from this material have exceptional flexibility and low surface hardness of 63 Shore A.

Liqcreate Premium Flex is easy to use on all open source DLP and LCD 3D-printers in the range of 385 – 420nm. Its high elongation and low Shore A hardness makes it perfect for diversity of soft touch and elastic prototypes.

Scroll down to: Technical specifications | Printer compatibilityUse cases | Processing instructions



3d printer sla lcd dlp icon Liqcreate Flexible-X 3D print resin Soft tough

High flexibility

Easy printing

Soft touch



EAN: N/A SKU: N/A
Clear

Technical specifications

Polymer properties
Mechanical Properties UV post-curing
Description ASTM Method Metric Imperial
Tensile strength D638M 1.7 MPa 0.25 ksi
Elongation at break D638M 50 – 80% 50 – 80%
Tear strength D624 4.3 kN/m 25 lbf/in
Shore A Hardness D2240 63 63
Water sorption D570-98 1.6% 1.6%
Tg D7028 n/a n/a

tilt screen

Tilt screen to see the complete technical specifications table

Liquid Properties
Description ASTM Method
Appearance Turquoise / Blue liquid
Viscosity 700 cps at 25°C
Density 1.18 g/cm3
Ec 6.65 mJ/cm2
Dp metric 0.32 mm
Dp imperial 12.60 mils

More information

Values may vary and depend on individual machine processing and post-curing. For extra details, download the technical data sheet or user guide.

Technical Data Sheet   ⤓ Quick Guide   ⤓ User Guide

Need support?

Hazard statements on CLP product label
H315: Causes skin irritation.
H317: May cause an allergic skin reaction.
H319: Causes serious eye irritation.
H411: Toxic to aquatic life with long-lasting effects.

3D Printer compatibility

Do you want to use Premium Flex resin? Check if settings are available on our website for your printer!

Printer name Compatible?
Moonray S & D No
Formlabs Form2 No
Miicraft 125 No
Cubicon Lux hd No
Anycubic Photon Yes
Kudo3D Bean Yes
Wanhao Duplicator 7 Yes
Wanhao Duplicator 8 No
Uniz Slash No
Phrozen Shuffle Preliminary settings
Phrozen XL Preliminary settings
Phrozen Transform Preliminary settings
Asiga No
Peopoly Moai No
Elegoo Mars Yes
Beam3D Prism Preliminary settings
Atum3D DLP Station 5 No
385 – 420nm LCD, MSLA & DLP printer Contact us

Use cases

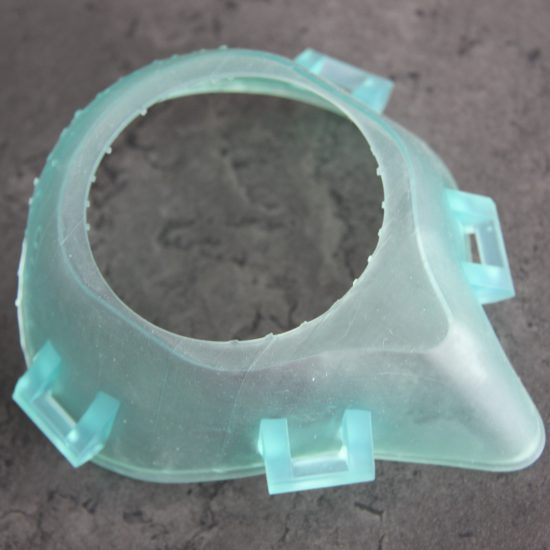

Liqcreate Premium Flex is perfect for the manufacturing of soft touch and elastic prototypes.

Liqcreate Premium Flex flexible 3D resin for DLP MSLA LCD 3D printers soft touch elongation rebound
Weight N/A
Printer compatibility

SLA, DLP, LCD

1 review for Premium Flex

  1. Rachid

    The premium flex resin is astonishingly flexible, I used it With a Wiiboox 3D printer that honestly prints anything and everything really well. The End product that amazes me the most is when I print with the Premium Flex. It is a bit smelly but it is very minimal. Highly recommended.
