After weeks of testing, we were struggling to get Composite-X to stick to the build plate of the new Elegoo Saturn 3 – 12K resolution resin MSLA printer. The odd thing is that we have not seen this issue before on other Elegoo printers before. in this article you can find a copy of the Composite-X settings that worked well. In this article you can find Elegoo Saturn 3 12K resin settings. Send us an e-mail to email@example.com if you need support.
Composite-X settings for the Elegoo Saturn 3 – 12K to solve adhesion issues

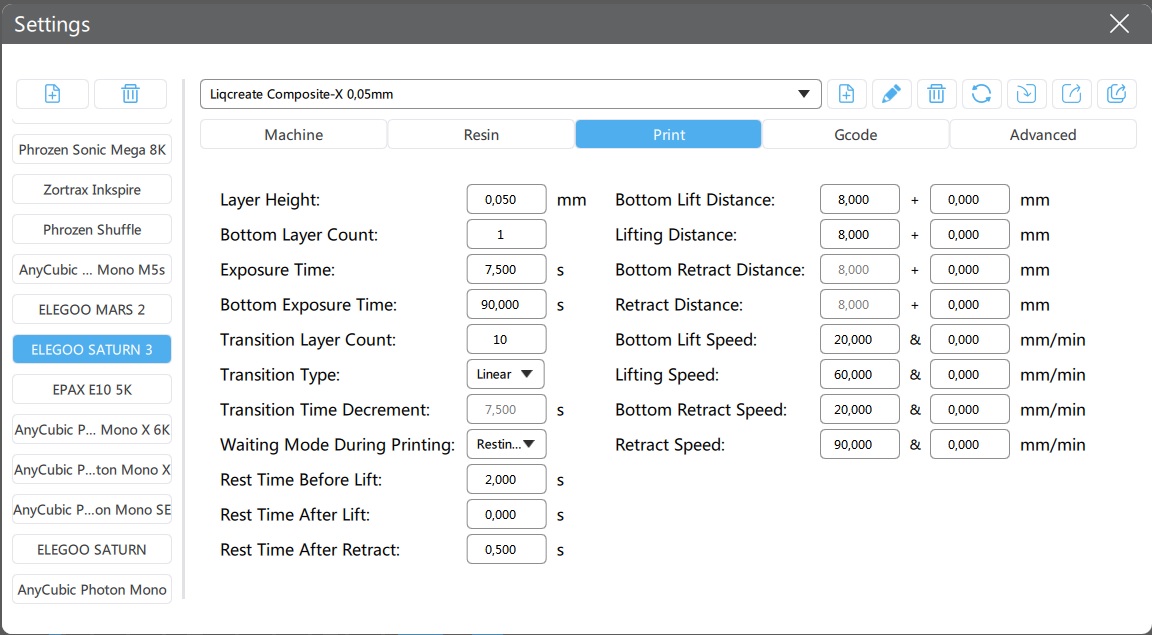

Somehow there are some issues when printing with standard settings with Composite-X on the Elegoo Saturn 3. the first layers stick to the platform and then suddenly the raft and/or supports will locally stop printing. when increasing the transition layers and reducing the speed of the first layers, this can be solved. see a screencopy of the Chitubox settings for Composite-X on the Elegoo Saturn 3 – 12K resin printer below.
Zoom in browser to see the values more clear.
Elegoo Saturn 3 – 12K resin settings
For or parameters of our complete Liqcreate resin portfolio, view this article: Elegoo Saturn 3 12K resin printing parameters.
About the Elegoo Saturn 3 – 12K resin 3D-printer.
Photo by Elegoo & metatechtr: their latest addition in 3D-printing hardware, the Elegoo Saturn 12. a 12K resolution resin 3D-printer.
Elegoo Saturn 3 – 12K resin 3D-printer key advantages
- Print Volume : 12K – 218x122x250 mm³
- Max Print Speed: 12K – Up to 70mm/h (resin dependant)
- Light Source: 405nm LED
- LCD size: 10″ 12K mono LCD
- XY Resolution: 19×24μm
- Laser-engraved build plate
If you have any questions related to Liqcreate 3D-printing resins on the Elegoo Saturn 3 or other resin based 3D-printer. Send us an e-mail at firstname.lastname@example.org and our engineers will support to dial-in the requested Liqcreate resin.
