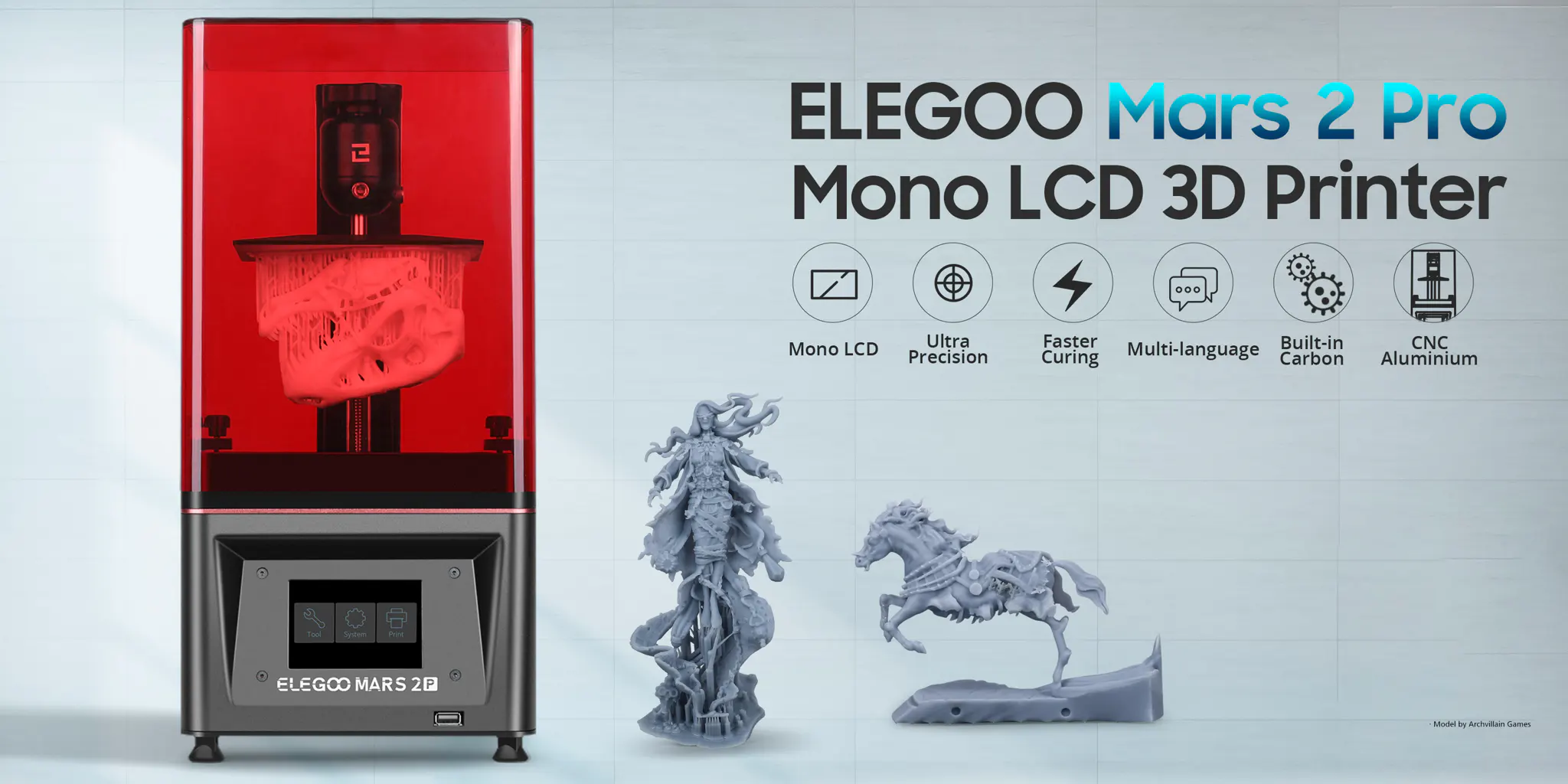

Elegoo has been producing MSLA resin 3D printers since 2017, competing with brands such as Anycubic and Phrozen in the compact and mid‑range market. The Elegoo Mars 2 Pro represents the second generation of the Mars‑series and introduced a monochrome LCD, faster curing behavior and improved resin compatibility compared to the original Mars. This page provides a technical overview of the Mars 2 Pro, its optical engine, print characteristics and typical use cases within resin‑based workflows.
Generational context within the Elegoo Mars‑series
The Mars 2 Pro marked a major step forward in the Mars‑series by replacing the RGB LCD of the original Mars with a 6‑inch 2K monochrome panel. This upgrade significantly reduced exposure times and increased LCD lifetime. Mechanical rigidity and optical uniformity were also improved, forming the foundation for later models such as the Mars 3, Mars 4 and Mars 4 Ultra 9K.
Elegoo Mars 2 Pro technical comparison table
The table below summarizes the core hardware specifications of the Elegoo Mars 2 Pro and places it in context with earlier and later Mars‑series models. These parameters highlight differences in LCD resolution, pixel size, build volume, optical systems and mechanical design that influence curing behavior and overall MSLA workflow performance.
Specification comparison
The specifications below outline how the Elegoo Mars 2 Pro differs from earlier and later Mars‑series models in terms of LCD resolution, pixel density, optical efficiency and mechanical stability.
| Specification | Mars (Original) | Mars 2 Pro | Mars 3 |
|---|---|---|---|
| LCD type | RGB LCD | 2K Monochrome | 4K Monochrome |
| Pixel size | ~47–50 µm | ~50 µm | 35 µm |
| Build volume (mm) | 120 × 68 × 155 | 129 × 80 × 160 | 143 × 89 × 175 |
| Light source | Standard MSLA LEDs | COB LED array | COB + Fresnel |
| Print speed | Slow due to RGB | Faster due to mono LCD | Faster and more uniform |
| Z‑axis | Single linear rail | Single linear rail | Single linear rail |
| LCD lifetime | Low | High | High |
| Resin compatibility | 405 nm | 405 nm | 405 nm |
Optical system and LCD characteristics
The Mars 2 Pro uses a 6‑inch 2K monochrome LCD combined with a COB‑LED light source. This configuration provides faster exposure times, improved irradiance stability and longer LCD lifetime compared to RGB‑based systems. While the pixel size is larger than later 4K and 9K models, the optical system delivers predictable curing behavior suitable for general‑purpose resin printing.
Print performance and dimensional accuracy
The Mars 2 Pro provides stable curing behavior and reliable dimensional accuracy when paired with optimized resin settings. It performs well with general‑purpose photopolymers, dental model materials and engineering resins that do not require high‑resolution XY detail. It is less suited for miniature‑scale applications where fine pixel density is essential.
Build volume and mechanical design
The Mars 2 Pro features a compact build volume typical of early MSLA printers. Its mechanical design includes a single linear Z‑axis rail, a reinforced frame, a sandblasted build platform and a standard FEP‑based resin vat. These components support stable layer formation and predictable print performance.
Workflow and user experience
The Mars 2 Pro is designed for predictable operation with short exposure times, stable curing behavior and broad resin compatibility. Its workflow suits users who need reliable MSLA performance without the complexity of larger or higher‑resolution systems.
Resin compatibility and exposure behavior
The Mars 2 Pro works with a wide range of 405 nm photopolymer resins. Users can expect short exposure times, consistent cure depth and stable performance across the 2K monochrome LCD. For detailed exposure parameters, see the validated resin settings for the Elegoo Mars 2 Pro.
When to choose the Elegoo Mars 2 Pro
The Mars 2 Pro is suitable for users who need an affordable, reliable MSLA printer with improved curing speed, stable optical performance and broad resin compatibility. It is less suitable for applications requiring high‑resolution 4K or 9K output.
How the Elegoo Mars 2 Pro compares to earlier models
Compared to the original Mars, the Mars 2 Pro introduces a monochrome LCD, faster curing behavior, improved optical uniformity and a slightly larger build area. While it does not match the resolution of later 4K and 9K models, it provides strong performance for general‑purpose resin printing.
