Kulzer Cara Print 4.0 Pro compatible resin & parameters

Kulzer developed their own resin 3D-printer a few years ago. The all-rounder cara Print 4.0 pro is a 3D printer developed by dental experts to be part of a comprehensive, thoroughly tested workflow. According to Kulzer it offers dental technicians a faster, more economical method of producing polymer-based dental appliances in-house. Not only does it provide a cost-effective alternative to milling for certain applications, it is more competitively priced than other 3D printers on the market, while still meeting all the accuracy standards. Compared to the earlier Cara Print models, cara Print 4.0 pro offers a bigger building platform for greater productivity. Additionally the printer is equipped with 385 nm LED:

  • – High productivity with a 46% larger building area (124 x 70 mm)
  • – Greater process stability and 385 nm wavelength LED’s



Contact us



Kulzer Cara Print 4.0 Pro resin 3D-printing parameters.

The Kulzer Cara Print 4.0 Pro resin printer is a closed systems, meaning that is is not developed to work with other resins other then Kulzer dima print resins. It happens that resins can have similar reactivity compared to Kulzer dima print resins and that you can process them on the Kulzer Cara Print 4.0 Pro printer. Our partners tested this and you can find the matches below. Can other resins work? It could be, but it will be a trial and error experiment and there is a chance it might not end-up in satisfying results.

Layer thickness Kulzer Cara 4.0 Pro printing program
Wax Castable 100 µm  n/a
50 µm Castable 50 micron settings
Premium Model 100 µm n/a
50 µm n/a
Deep Blue 100 µm n/a
50 µm n/a
Stone Coal Black 100 µm n/a
50 µm n/a
Flexible-X 100 µm n/a
50 µm n/a
Premium Black 100 µm n/a
50 µm n/a
Premium Wite 100 µm n/a
50 µm n/a
Premium Tough 100 µm n/a
50 µm n/a
Dental Model Pro Beige 100 µm n/a
50 µm  n/a
Clear Impact 100 µm  n/a
50 µm  n/a
Tough-X 100 µm  n/a
50 µm  n/a
Hazard Glow 100 µm  n/a
 n/a
Composite-X 100 µm  n/a
50 µm  n/a



About the Kulzer Cara print 4.0 Pro dental resin 3D-printer.

Cara Print 4.0 pro offers a bigger building platform compared to its predecessor for even greater productivity. The improved dental 3D printer has 385 nm LEDs for extra stability in of color and properties, plus new smooth technology that delivers smooth surfaces without any visible layers.

kulzer cara print 4.0 pro compatible resin liqcreate dental model aligner tray surgical guide custom impression denture permanent crown splint

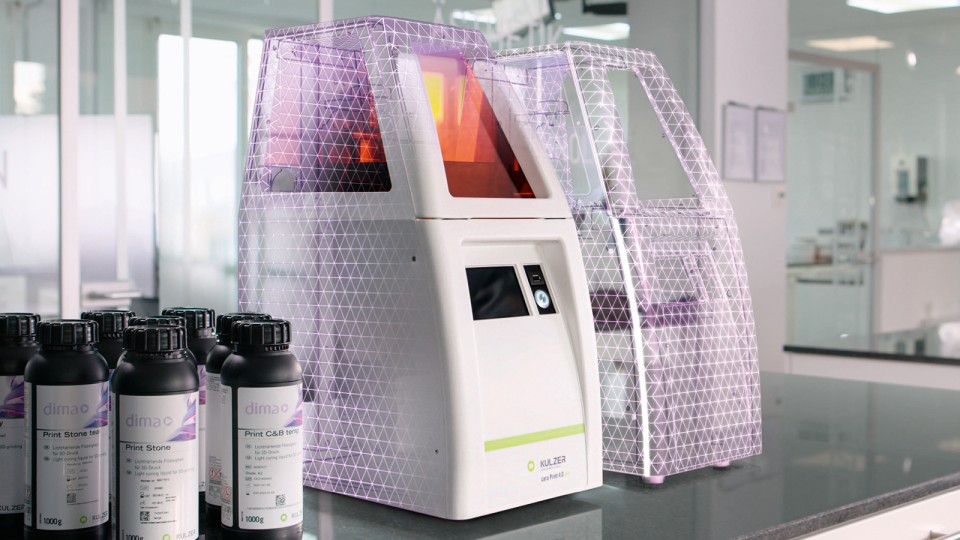

Image by Kulzer: The Kulzer Cara Print 4.0 Pro dental resin 3D-printer.



Kulzer Cara Print 4.0 Pro dental resin 3D-printer specifications.

Key features of the Cara Print 4.0 Pro.

  • – Printer type                                     DLP
  • – Wavelength                                     385 nm
  • – XY resolution                                   53.6 micron
  • – Layer thickness                                0,3 – 0,1 mm
  • – Build volume (L*W*H)                     124 * 70 * 130 mm

Contact us if you have any questions or when you need help with settings for the Kulzer Cara Print 4.0 Pro dental resin 3D-printer or other resin based 3D-printers.
