The AccuFab-D1 is more than just a 3D printer; it is a specialized tool designed to bridge the gap between intraoral scanning and the final physical dental appliance. Utilizing an advanced Full-HD 1080p projector, it delivers ultra-fine details that are critical for restorative and orthodontic success.
Key Technical Specifications
-
Technology: Digital Light Processing (DLP)
-
Build Volume: 144 x 81 x 180Â mm
-
Print Speed: Up to 40 mm/ hour (resin dependant / can produce 4 arch models in an hour)
-
Accuracy: 35 micron
-
Layer Resolution: 25micron\50micron\100micron (optional)
-
Connectivity: USB, Ethernet, and Wi-Fi
Why Choose the AccuFab-D1 for Your Lab?
1. Exceptional Accuracy and Detail
In dentistry, a fraction of a millimeter can be the difference between a perfect fit and a failed restoration. The AccuFab-D1 uses a high-resolution projector and a proprietary algorithm to ensure that every margin and contact point is rendered with high fidelity.
2. Workflow Efficiency with AccuWare
The printer comes bundled with AccuWare, Shining 3D’s dedicated data planning and printing control software. This software simplifies the “scan-to-print” process with features like:
-
One-click printing: Streamlines the setup for common dental jobs.
-
Automatic support generation: Saves time and minimizes material waste.
-
Z-axis auto-calibration: Ensures consistent results without manual tuning.
3. Open System & Material Versatility
While Shining 3D offers its own line of high-quality Shining Dent materials, the AccuFab-D1 is an open system. This means you are not locked into a single brand and can use a wide range of third-party resins for:
- Surgical guides
- Working models
- Castable wax-ups
- Gingiva masks
- Customized impression trays
Shining 3D AccuFAB D1 resin 3D-printing parameters.
| Resin | Layer thickness | Curing time (seconds) | Remark |
| Premium Model | 100 µm | n/a | |
| 50 µm | 3,50 | 5 base layers of 16 seconds | |
| Premium White | 100 µm | n/a | |
| 50 µm | n/a | ||
| Premium Black | 100 µm | n/a | |
| 50 µm | n/a | ||
| Premium Flex | 100 µm | n/a | |
| 50 µm | n/a | ||
| Premium Tough | 100 µm | n/a | |
| 50 µm | n/a | ||
Support
Do you need any help with 3D printing our SLA, DLP or LCD resins? We can help you! Just look for the question you have below. If you can’t find it, let us know by contacting us!
Printer Settings →
About Premium Model
Liqcreate Premium Model is a matte, opaque skin/peach colored photopolymer resin. Its matte color accentuates depth and detail in your dental models, which accommodates a perfect view on undercuts in 3D-printed models. 3D-printed parts from this material have exceptional dimensional stability and low shrinkage during printing. Liqcreate Premium Model is easy to use on all open source LCD and DLP 3D-printers in the range of 385 – 420nm. This material has excellent properties like low shrinkage and low odor, accuracy and dimensional stability, making it perfect for the production of dental models on the Shining 3D Accufab D1 resin 3D-printer.
Key benefits |
3D-Printer compatibility |
| ·       Excellent dimensional stability | ·       Shining 3D Accufab D1 |
| ·    High detail | ·    Asiga Max & 4K Pro |
| ·       Temperature resistant for aligner production | ·    Phrozen & Anycubic Series |
| ·       Low shrinkage | ·    And many more |

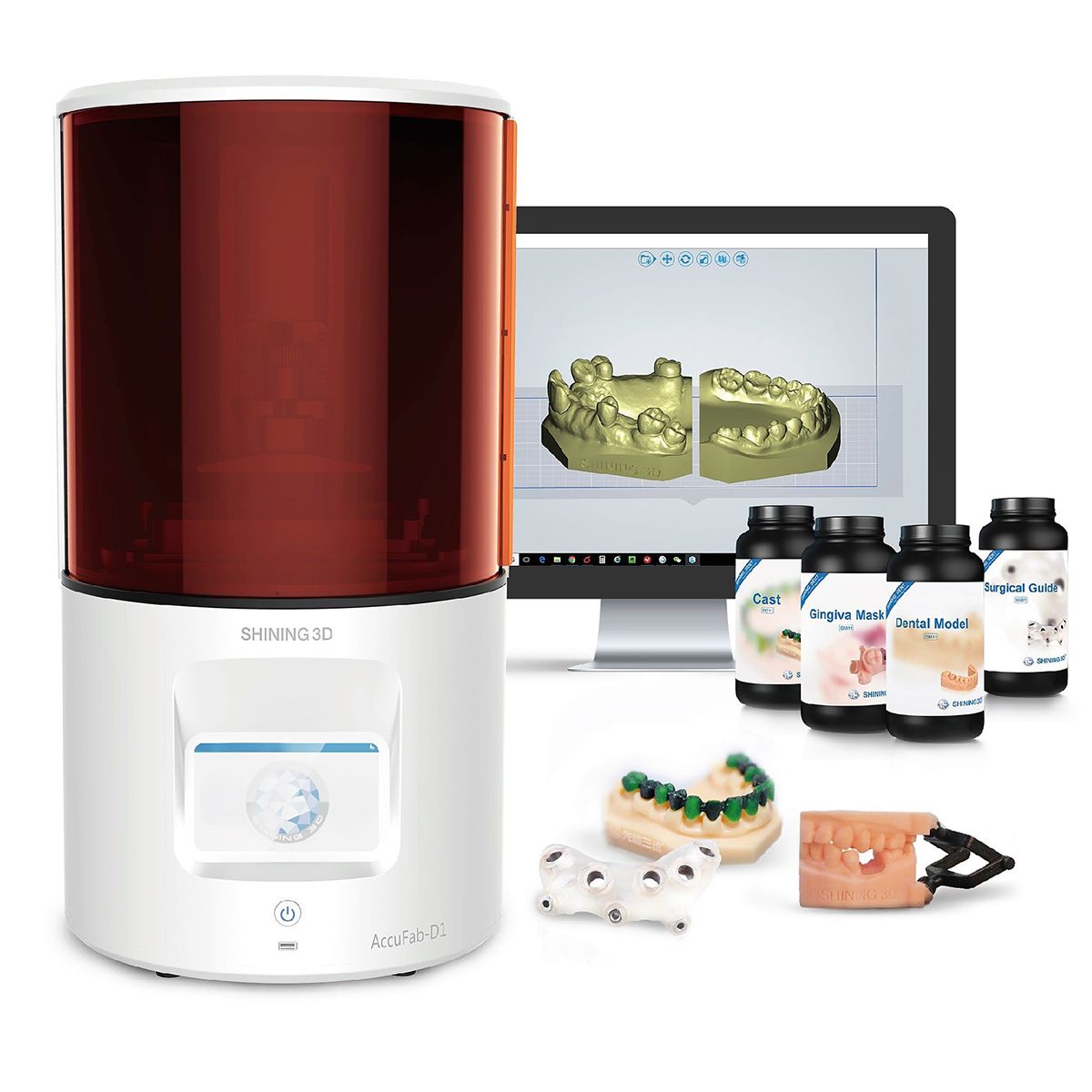

Image by shining3d
