The Anycubic Photon Mono M5s Pro introduced a new performance tier in desktop MSLA printing for users searching for reliable and repeatable Anycubic Photon Mono M5s Pro resin behavior with third‑party materials such as Liqcreate. Equipped with one of the first 10.1‑inch 14K monochrome LCD screens in its class, the printer delivers an exceptionally high pixel count of 13312 × 5120 and a pixel pitch of 16.8 × 24.8 microns (X × Y). This combination of resolution and optical precision enables extremely sharp micro‑features, smooth surface transitions and consistent curing across the entire build area, making the M5s Pro suitable for engineering parts, dental models, miniatures and other applications where dimensional accuracy is essential.
The printer’s high‑speed architecture further enhances its capabilities. With an advertised average printing speed of 105 mm/s (resin and parameter dependant), the Photon Mono M5s Pro is designed to reduce printing time significantly, although real‑world speed remains dependent on resin type, exposure settings and layer thickness. Anycubic includes an ACF film with reduced peel force to support these higher speeds, helping to stabilize layer separation and improve print reliability when working with fast‑curing or high‑viscosity materials. This combination of optical performance and mechanical optimization makes resin selection and parameter tuning more important than ever.
As users explore the full potential of the machine, many look for verified information on which materials work well and how to configure exposure settings for consistent results. This article focuses on Anycubic Photon Mono M5s Pro resin compatibility with Liqcreate materials, offering practical guidance on exposure times, lift speeds, layer thicknesses and workflow considerations. Because the M5s Pro shares several optical and mechanical characteristics with the Photon Mono M5s, the existing M5s parameters can serve as a reliable starting point when dedicated profiles are not yet available. For users who require additional support or need assistance tuning a specific Liqcreate resin, our technical team is available at info@liqcreate.com.
Please note that the Photon M5 series includes multiple versions with different specifications. If you are working with another model in the M5 lineup, you can find separate information for those printers through the link. The goal of this guide is to help you achieve stable, predictable performance with Anycubic Photon Mono M5s Pro resin settings when using Liqcreate materials, whether you are printing prototypes, functional components or high‑detail visual models.
Anycubic Photon Mono M5s Pro resin settings
| Resin | Layer thickness | Exposure time (seconds) | Base layer count | Base layer exposure | Lift Height (mm) | Lift speed / retract speed (mm/min) | |
| Bio-Med Clear | 100 µm | 7,5 | 2 | 50 | 6 | 60 / 90 | |
| 50 µm | 6,0 | 2 | 40 | 6 | 60 / 90 | ||
| Wax Castable | 50 µm | regular parts | 3,0 | 2 | 30 | 6 | 60 / 90 |
| 50 µm | thin parts | 4,0 | 2 | 30 | 6 | 60 / 90 | |
| Flexible-X* | 50 µm | 12,0 | 2 | 60 | 10 | 60 / 90 | |
| Elastomer-X* | 50 µm | 18,0 | 2 | 80 | 10 | 60 / 90 | |
| Flame Retardant HDT | 100 µm | 5,0 | 2 | 40 | 6 | 90 / 150 | |
| Composite-X | 50 µm | 8,5 | 8 | 100 | 8 | 90 / 120 |
** Tough-X, Flexible-X and Premium flex require heavy supports, Elastomer-X requires extra heavy supports.
About the Anycubic Photon Mono M5s Pro resin 3D-printer.

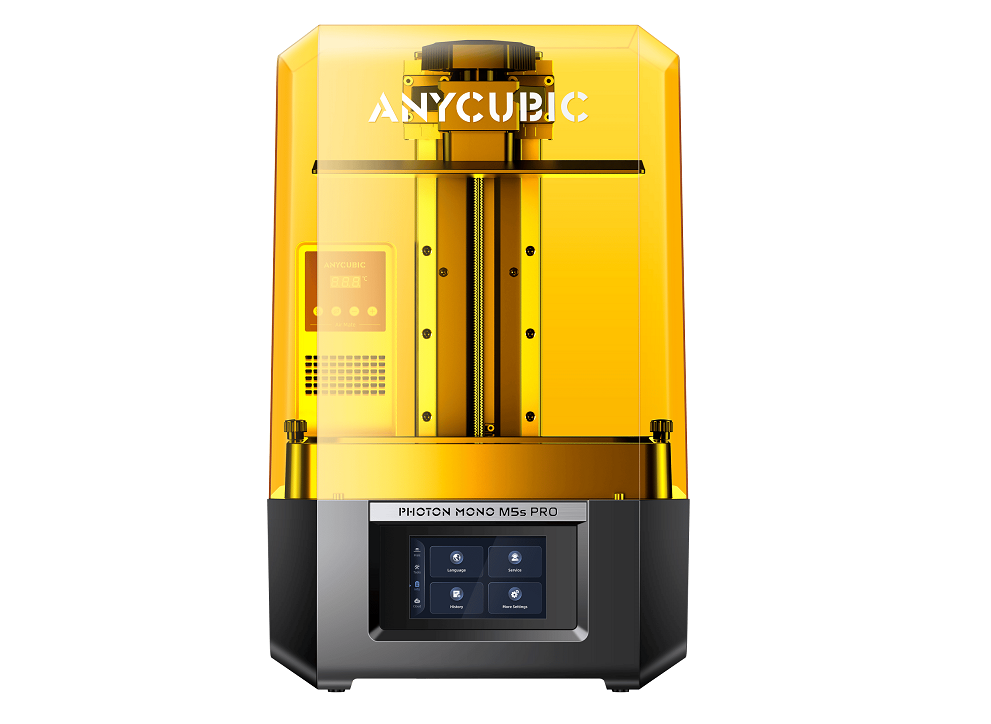

Image by Anycubic: The new Anycubic Photon Mono M5s Pro resin 3D-printer.
Anycubic Photon Mono M5s Pro resin 3D-printer specifications
| Photon Mono M5s Pro | Photon Mono M5s | |
| Device size | 290x270x460mm | |
| Build volume | 223.78 x 126.38 x 200mm | 218x123x200mm |
| Print volume | 5.65L | 5.4L |
| LCD display+resolution | 14K 10.1 inch Monochrome LCD | 12K 10.1 inch Monochrome LCD |
| XY resolution | 16.8 x 24.8 µm | 19×24µm |
| Light source | LED matrix UV light source | |
| Screen protector | replaceable scratch-resistant ACF film | |
| Levelling | levelling-free | |
| Building plate | laser engraved build platform | |
| Z-axis | double guide rails with 10 µm | |
| Air Heater & Purifier | Yes | no |
If you have any questions related to Liqcreate 3D-printing resins on the Anycubic Photon Mono M5s Pro or other resin based 3D-printer. Send us an e-mail at info@liqcreate.com and our engineers will support to dial-in the requested Liqcreate resin.
