The Phrozen Sonic Mighty 12K represents the latest evolution in Phrozen’s mid‑format MSLA lineup, offering a significant increase in optical precision compared to earlier Mighty‑series printers. Equipped with a 10.1‑inch 12K monochrome LCD, a reinforced Z‑axis assembly and a linear‑projection LED module, the Sonic Mighty 12K is engineered to deliver stable curing behavior, high dimensional accuracy and consistent performance across a wide range of Liqcreate 405 nm materials. With an XY resolution of 19 × 24 µm and layer heights down to 10 µm, the system is suitable for engineering components, dental models, jewelry patterns and general‑purpose prototyping workflows where repeatability and surface quality are essential.
Users familiar with the Phrozen Sonic Mighty 8K or the earlier Sonic Mighty 4K will notice improvements in irradiance uniformity, cure depth predictability and overall print stability. The Sonic Mighty 12K also shares several workflow characteristics with the newer Phrozen Sonic Mighty Revo, making it a relevant reference point for users comparing exposure behavior, mechanical rigidity and resin compatibility across the Phrozen ecosystem. These cross‑platform similarities help streamline parameter tuning when switching between printers of different resolutions or build volumes.
If validated parameters for your resin are not yet available, the Phrozen Sonic Mighty 4K settings provide a reliable baseline for dialing in exposure values on the Mighty 12K due to comparable optical output and curing characteristics. For a broader overview of compatible printers and materials, the Liqcreate resin parameter database contains validated exposure settings for nearly all monochrome MSLA systems. For direct assistance with exposure tuning, resin selection or unlisted materials, our engineering team can be reached through the Liqcreate contact page.
Phrozen Sonic Mighty 12K resin 3D‑printing settings
The following resin parameters have been validated on the Phrozen Sonic Mighty 12K to ensure stable curing behavior, accurate detail reproduction and consistent dimensional performance across all tested Liqcreate materials. These settings include optimized exposure times, lift speeds, bottom layer behavior and recommended support strategies tailored to the 12K LCD and linear‑projection LED module used in the Mighty 12K.
| Resin | Layer thickness | Exposure time (seconds) | Base layer count | Base layer exposure | Lift Height | Off-time / bottom layer | Lift speed / retract speed |
| Stone Coal Black | 100 µm | n/a | |||||
| 50 µm | 9,0 | 2 | 50 | 8 | 2,0 | 90 / 150 |
*all profiles used 6 transition layers, except otherwise noted.
Find Phrozen Sonic compatible resin
About the Phrozen Sonic Mighty 12K resin 3D‑printer
The Phrozen Sonic Mighty 12K is built around a high‑resolution 12K monochrome LCD and a rigid mechanical platform designed for consistent optical performance. The dual linear guide rails, laser‑cut build plate and optimized nFEP film contribute to predictable peel behavior and reduced variance across the build plate. Combined with the linear‑projection LED module, the system provides uniform irradiance and stable curing characteristics suitable for Liqcreate engineering, dental and flexible materials.

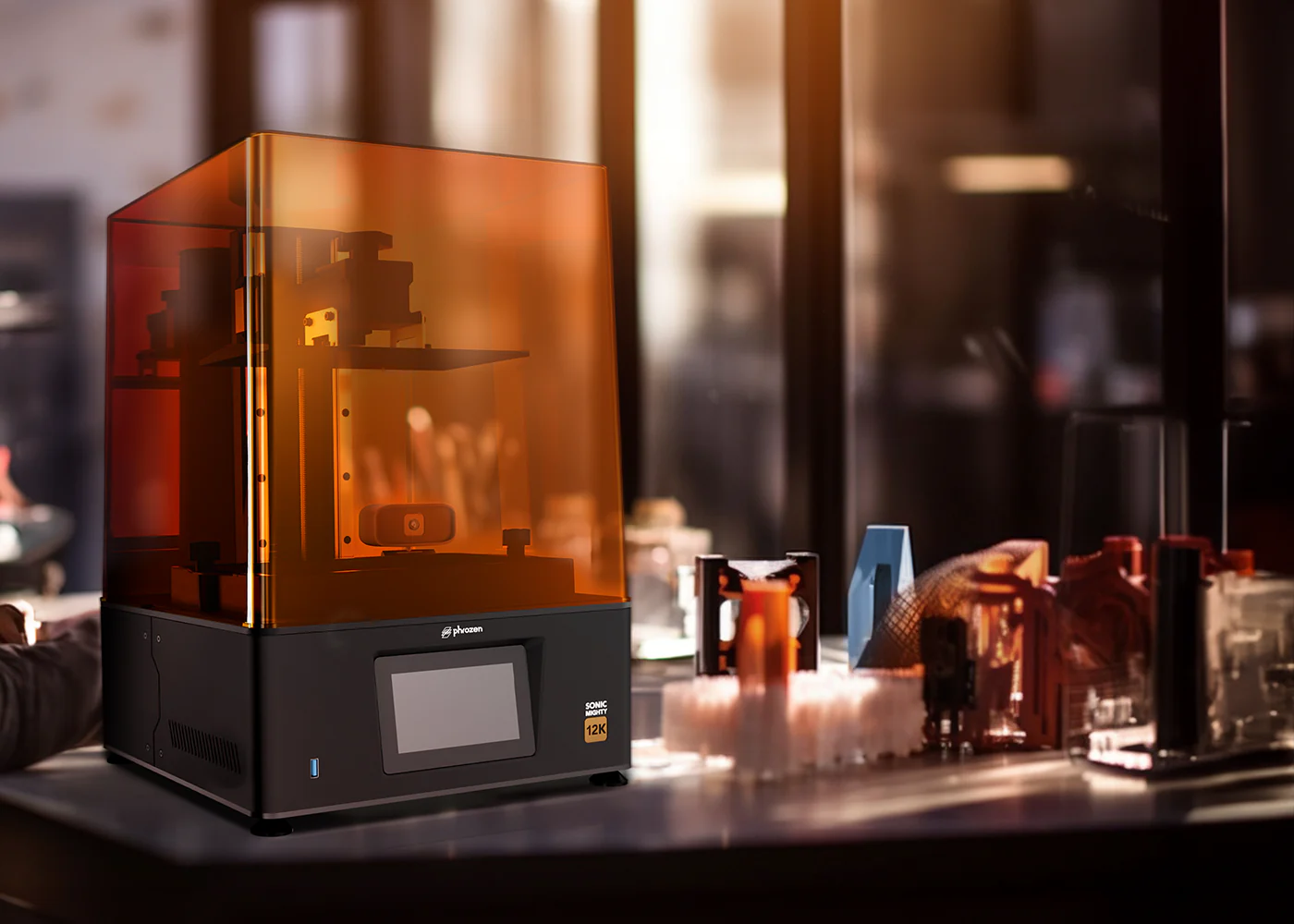

Image by Phrozen3D: The Phrozen Sonic Mighty 12K resin 3D-printer.
Phrozen Sonic Mighty 12K resin 3D‑printer specifications
The Phrozen Sonic Mighty 12K features a 10.1‑inch 12K monochrome LCD, a reinforced Z‑axis and a linear‑projection LED module, resulting in improved optical uniformity and stable curing performance. These hardware specifications contribute to consistent dimensional accuracy and predictable resin behavior across a wide range of Liqcreate 405 nm materials.
Specifications:
-
- – Build volume of 218 x 123 x 235 mm,
- – 12K resolution with an XY resolution of 19 x 24 μm,
- – 10.1 inch monochrome LCD screen with up to 2000 working hours,
- – Laser cut build platform,
- – High-quality nFEP film for more longevity,
- – LED module for linear projection,
- – Dual linear guide rail,
- – Real-time monitoring via smartphone,
- – Interfaces for USB, LAN and WLAN.
Support
If you need assistance with resin compatibility, exposure tuning or workflow optimization for the Phrozen Sonic Mighty 12K, our engineering team is available to help. For general guidance across all supported printers, refer to the Liqcreate resin parameter database. For direct technical support or printer‑specific questions, please reach out through the Liqcreate contact page.
FAQ — Phrozen Sonic Mighty 12K resin settings and compatibility
1. Are Liqcreate resins compatible with the Phrozen Sonic Mighty 12K? Yes. Most Liqcreate 405 nm materials are compatible with the Sonic Mighty 12K, including engineering, dental, jewelry and flexible resins. The strong 12K light engine and uniform irradiance distribution provide stable curing behavior across a wide range of viscosities.
2. Can I use Mighty 8K or Mighty 4K resin settings on the Mighty 12K? Yes. When dedicated Mighty 12K parameters are not available, the Phrozen Sonic Mighty 8K and Phrozen Sonic Mighty 4K settings provide reliable baselines due to similar optical output and curing characteristics. Minor exposure adjustments may be required depending on resin type and geometry.
3. How does the Mighty 12K compare to the Mighty Revo in resin performance? The Sonic Mighty 12K and Sonic Mighty Revo share similar mechanical stability and irradiance behavior. The Revo introduces workflow automation, while the Mighty 12K focuses on high‑resolution output. Exposure tuning principles for Liqcreate materials are largely transferable between both systems.
4. Which Liqcreate resins require heavy or extra‑heavy supports on the Mighty 12K? Flexible‑X, Tough‑X and Premium Flex require heavy supports due to their mechanical properties. Elastomer‑X requires extra‑heavy supports, especially on large cross‑sections or tall geometries.
5. What should I do if my resin is not listed in the Mighty 12K parameter table? Start with the validated Phrozen Sonic Mighty 4K settings and adjust exposure in small increments. For a broader overview of compatible printers and materials, consult the Liqcreate resin parameter database. For direct assistance with tuning or unlisted materials, contact our engineering team.
