The Phrozen Sonic Mighty 4K is a mid‑format MSLA system equipped with a 9.3‑inch monochrome LCD, designed to deliver stable curing behavior and consistent performance across a wide range of Liqcreate engineering and general‑purpose resins. As part of the Mighty‑series, its workflow, exposure characteristics and mechanical behavior align closely with the newer Mighty 8K, Mighty 12K, Mighty Revo 14K and Mighty Revo 16K platforms. Users working across multiple systems can compare printer‑specific exposure behavior through the Phrozen Sonic Mighty‑series resin settings.
The validated Liqcreate resin settings for the Sonic Mighty 4K are based on controlled testing with its optical engine, Z‑axis assembly and 4K LCD resolution. These parameters ensure predictable cure depth, dimensional accuracy and surface detail across all compatible materials. For users who require cross‑platform comparisons or access to additional materials, all resin families and exposure profiles are available in the Liqcreate resin parameter database.
To streamline workflow setup, downloadable exposure files for the Sonic Mighty 4K are available for direct import into supported slicers, ensuring consistent baseline performance across different environments. If you need assistance with exposure tuning, workflow optimization or troubleshooting for the Mighty‑series or any other resin‑based 3D‑printer, you can contact us for support.
Phrozen Sonic Mighty 4K resin 3D‑printing parameters
The validated Liqcreate exposure settings for the Phrozen Sonic Mighty 4K are optimized for its 9.3‑inch monochrome LCD, ParaLED 2.0 light engine and mid‑format MSLA architecture. These parameters ensure predictable cure depth, dimensional accuracy and surface detail across engineering, functional and general‑purpose resins. The values below reflect controlled testing on the Mighty 4K platform and provide a stable baseline for users working within the broader Mighty‑series workflow, including the Mighty 8K, Mighty 12K and Mighty Revo 14K.
| Resin | Layer thickness | Exposure time (seconds) | Base layer count | Base layer exposure | Lift Height | Off-time / bottom layer | Lift speed / retract speed |
| Strong-X | 100 µm | 15,0 | 2 | 60 | 8 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 11,0 | 1 | 50 | 8 | 1,0 / 3,0 | 60 / 90 | |
| ESD | 100 µm | 18,0 | 2 | 40 | 8 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 16,0 | 2 | 35 | 8 | 1,0 / 3,0 | 60 / 90 | |
| Flexible-X | 100 µm | 14,0 | 2 | 90 | 10 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 12,0 | 2 | 85 | 10 | 1,0 / 3,0 | 60 / 90 | |
| Elastomer-X | 100 µm regular | 22 | 2 | 60 | 10 | 2,0 / 2,0 | 60 / 90 |
| 50 µm regular | 20 | 2 | 50 | 10 | 2,0 / 2,0 | 60 / 90 | |
| 100 µm thin | 26 | 2 | 60 | 10 | 2,0 / 2,0 | 60 / 90 | |
| 50 µm thin | 23 | 2 | 50 | 10 | 2,0 / 2,0 | 60 / 90 | |
| Deep Blue | 100 µm | 12,0 | 2 | 50 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 10,0 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Stone Coal Black | 100 µm | 11,0 | 2 | 50 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 9,0 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium White | 100 µm | 5,5 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 4,1 | 6 | 30 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium Black | 100 µm | 6,5 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 5,1 | 6 | 30 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium Model | 100 µm | 5,0 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 4,1 | 6 | 30 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium Tough | 100 µm | 6,5 | 6 | 20 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 5,5 | 6 | 20 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Wax Castable | 100 µm | 6,0 | 2 | 40 | 8 | 1,0 / 1,0 | 90 / 120 |
| 50 µm | 5,0 | 2 | 30 | 8 | 1,0 / 1,0 | 90 / 120 | |
| 35 µm | 4,0 | 2 | 25 | 8 | 1,0 / 1,0 | 90 / 120 | |
| Premium Flex | 100 µm | 5,0 | 2 | 40 | 10 | 2,0 / 2,0 | 60 / 90 |
| 50 µm | 4,0 | 2 | 30 | 10 | 2,0 / 2,0 | 60 / 90 | |
| Clear Impact | 100 µm | 16,0 | 2 | 60 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 14,0 | 2 | 50 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Tough-X | 100 µm | 17,0 | 2 | 60 | 10 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 15,0 | 2 | 50 | 10 | 1,0 / 3,0 | 60 / 90 | |
| Hazard Glow | 100 µm | 13,0 | 2 | 60 | 8 | 2,0 / 2,0 | 90 / 120 |
| Bio-Med Clear | 100 µm | 9,0 | 2 | 45 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 7,0 | 2 | 40 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Composite-X | 100 µm | 9,0 | 2 | 60 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 7,0 | 2 | 50 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Dental Model Pro Beige | 100 µm | 7,5 | 2 | 65 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 5,5 | 2 | 70 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Dental Model Pro Grey | 100 µm | 7,5 | 2 | 65 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 5,5 | 2 | 70 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Gingiva Mask | 100 µm | 16,0 | 2 | 30 | 10 | 2,0 / 3,0 | 60 / 60 |
| 50 µm | 14,0 | 2 | 25 | 10 | 2,0 / 3,0 | 60 / 60 |
All exposure values were validated on the Sonic Mighty 4K using standard Liqcreate workflows. Note: all profiles used 6 transition layers, except otherwise noted.
Find Phrozen Sonic compatible resin
About the Phrozen Sonic Mighty 4K resin 3D‑printer
The Phrozen Sonic Mighty 4K is a mid‑format MSLA resin 3D‑printer equipped with a 9.3‑inch monochrome LCD and a 22 cm Z‑axis, designed to deliver stable layer‑cure behavior and consistent performance across a wide range of photopolymer materials. Its 4K LCD resolution provides a 52 µm XY pixel pitch, enabling reliable dimensional accuracy and surface detail for functional parts, prototypes and general‑purpose applications. The combination of a rigid Z‑axis assembly, ParaLED‑based optical engine and optimized light distribution makes the Sonic Mighty 4K a predictable and repeatable platform within the broader Mighty‑series workflow.

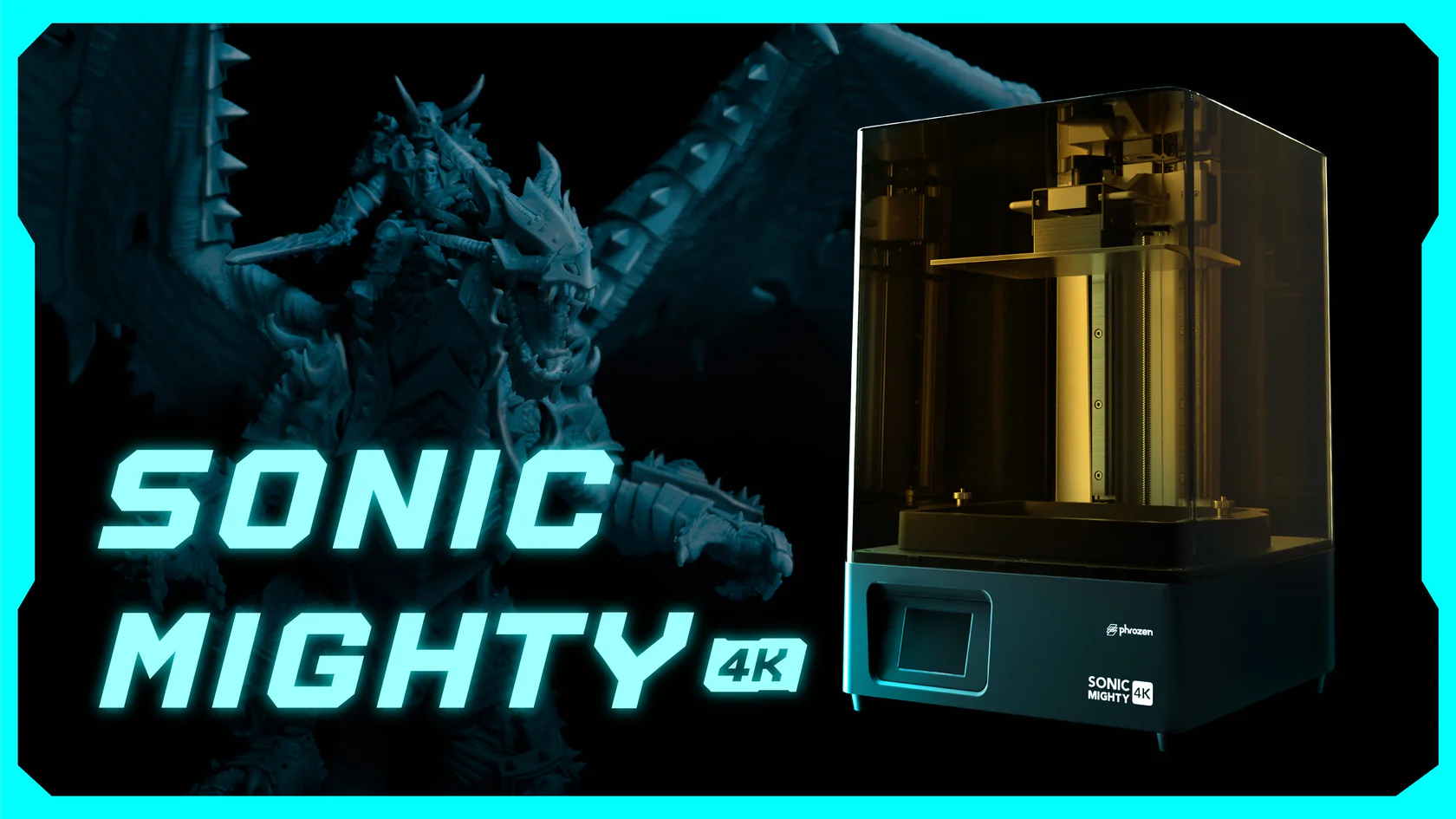

Image by Phrozen3D: The Phrozen resin 3D-printer line-up with on the left the Phrozen Sonic Mighty 4K resin 3D-printer.
Phrozen Sonic Mighty 4K resin 3D‑printer specifications
The Phrozen Sonic Mighty 4K is built around a 9.3‑inch monochrome LCD and a mid‑format MSLA architecture designed for stable exposure performance across engineering and general‑purpose resins. Its rigid Z‑axis assembly, ParaLED Matrix 2.0 light engine and 52 µm XY resolution provide predictable curing behavior, dimensional accuracy and consistent surface detail. The specifications below outline the core hardware characteristics that define the Mighty 4K’s printing performance and its position within the broader Mighty‑series lineup.
- – System: Phrozen OS
- – Operation: 2.8in Touch Panel
- – Slicer Software: CHITUBOX
- – Connectivity: USB
- – Technology: Resin 3D Printer – LCD Type
- – LCD Specification: 9.3″ 4K Mono LCD
- – Light Source: 405nm ParaLED Matrix 2.0
- – XY Resolution: 52 µm
- – Layer Thickness: 0.01-0.30mm
- – Maximum Printing Speed: 80mm/ hour
- – Power Requirement: AC100-240V~50/60Hz
- – Build Volume: 20 x 12.5 x 22 cm
- – Printer Weight: 8 kg
→ View all Phrozen Sonic Mighty‑series resin settings
Support
If you need assistance with resin settings, exposure tuning or workflow optimization for the Phrozen Sonic Mighty 4K or any other resin‑based 3D‑printer, our team can help. We provide guidance on calibration, troubleshooting, print consistency and material‑specific parameter adjustments across all Liqcreate‑compatible systems. Contact us if you have any questions or when you need help with settings for the Phrozen or other resin‑based 3D‑printers.
