The Phrozen Sonic Mini is the first‑generation compact MSLA system in the Mini‑series, equipped with a 5.5‑inch monochrome LCD and a straightforward mechanical design that prioritizes speed, ease of use, and consistent resin performance. Despite its entry‑level positioning, the Sonic Mini delivers reliable curing behavior across a wide range of Liqcreate materials, making it suitable for hobby, prototyping, and light engineering applications.
Within the broader Mini‑series, the Sonic Mini shares its general workflow and resin compatibility with the higher‑resolution models, while differing mainly in LCD resolution and generation‑specific hardware. Users working across multiple Mini‑series printers can compare exposure behavior and validated settings through the following pages: Phrozen Sonic Mini 4K exposure parameters, Phrozen Sonic Mini 8K resin settings, and Phrozen Sonic Mini 8K S resin parameters. These pages provide a unified overview of Liqcreate exposure values across the entire Mini‑series.
All compatible Liqcreate resins and validated exposure settings for the Phrozen Sonic Mini are listed below. These parameters ensure consistent cure depth, dimensional accuracy, and surface detail on the original Mini platform. For a complete overview of all available materials, visit the Liqcreate resin parameter database. If you require assistance with exposure tuning, workflow optimization, or troubleshooting, you can contact us for support at info@liqcreate.com.
The resin parameters on this page are validated specifically for the Phrozen Sonic Mini and reflect the exposure behavior of its first‑generation MSLA hardware.
Liqcreate Resin Parameters for the Phrozen Sonic Mini
These validated exposure settings are optimized for the Sonic Mini’s 5.5‑inch monochrome LCD, ParaLED 2.0 light engine and 62.5 µm XY resolution. They ensure consistent curing behavior, dimensional accuracy and surface detail across all compatible Liqcreate materials.
| Resin | Layer thickness | Curing time (seconds) | Remark |
| Strong-X | 100 µm | 15 | 6 base layers of 40 seconds |
| 30 µm | 7,5 | 6 base layers of 40 seconds | |
| Bio-Med Clear | 100 µm | 10,0 | 5 base layers of 60 seconds |
| Stone Coal Black | 100 µm | 14 | 6 base layers of 40 seconds |
About the Phrozen Sonic Mini Resin 3D‑Printer
The Phrozen Sonic Mini is a first‑generation MSLA resin 3D‑printer equipped with a 5.5‑inch monochrome LCD, designed to deliver fast layer‑cure times and consistent performance across a wide range of photopolymer materials. Its simplified mechanical structure and compact footprint make it suitable for hobby, prototyping, and small‑batch production workflows, while maintaining stable exposure behavior for most standard and engineering‑grade Liqcreate resins. The combination of a lightweight Z‑axis assembly and an efficient optical engine allows the Sonic Mini to produce reliable surface detail and dimensional accuracy despite its entry‑level positioning within the Mini‑series.

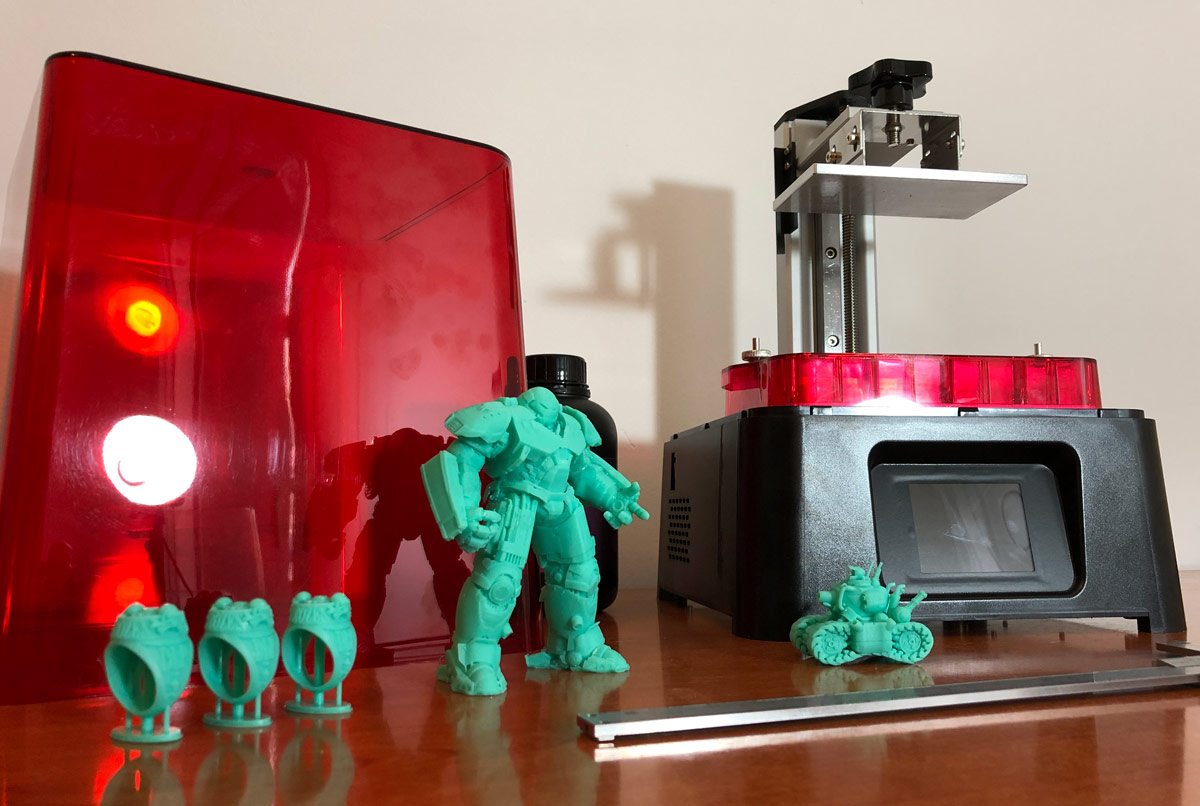

Image by 3DWork.io: testing the Phrozen Sonic Mini resin 3D-printer.
Specifications of the Phrozen Sonic Mini Resin 3D‑Printer
The Phrozen Sonic Mini features a compact MSLA architecture built around a 5.5‑inch monochrome LCD, enabling fast layer‑cure times and stable performance across a wide range of photopolymer materials. Its lightweight Z‑axis assembly, simplified mechanics, and efficient optical engine make it suitable for hobby, prototyping, and small‑scale production workflows. The specifications listed below outline the core hardware characteristics that define the Sonic Mini’s printing behavior, resin compatibility, and overall performance within the Phrozen Mini‑series.
- 1080P LCD with 5.5” Printing Area: 1920 x 1080 full-high-definition. Prints at 62.5µm with a printing area of 5.5”
- Monochrome LCD Screen: Prints up to 4 times faster than traditional 3D printers, taking only two seconds to print one layer. 2000 working hours guaranteed for all LCD screens, free 3-month warranty offered
- Multi-Resin Compatibility: Works with compatible with 3rd party resins
- Slicer Software: ChiTu Box V1.6.5
- Light Source: 405nm ParaLED Matrix 2.0
- XY Resolution: 62.5 µm
- Layer Thickness: 0.01-0.30mm
- Maximum Printing Speed: 80mm/ hour
- Print Volume: 4.7 x 2.6 x 5.1 in
- Printer Weight: 5 kg
The Phrozen Sonic Mini fits within the broader Mini‑series lineup, sharing similar workflow characteristics while differing mainly in LCD resolution and hardware generation.
For cross‑printer exposure differences and LCD‑specific curing behavior, visit the Phrozen Sonic Mini exposure settings page.
→ Back to the Phrozen Sonic Mini‑series resin overview
