The Phrozen Sonic Mighty 4K brings impressive power and precision to the mid‑sized resin printer market, combining Phrozen’s advanced monochrome LCD technology and improved build volume. Designed as a larger counterpart to the Sonic Mini, it extends possibilities without sacrificing detail or resin 3D-printing speed. At its heart is a 9.3‑inch monochrome LCD with 4K resolution, delivering 3840 × 2400 pixels and roughly 52 µm XY precision across a spacious 200 × 125 × 220 mm build area. This larger build plate allows users to produce medium-sized prints or multiple smaller pieces in one go—ideal for prototyping, dental labs, and jewelry making.
Speed is another standout feature. The monochrome LCD, paired with Phrozen’s ParaLED Matrix 2.0 light engine, powers fast cure times of around 1–2 seconds per layer. The result? Print speeds up to 80 mm/hour—about four times faster than older RGB-based resin printers. *Print speed is dependant on resin-settings-and the 3D-printer. Built with Phrozen OS and a responsive 2.8‑inch touchscreen, the Sonic Mighty 4K offers a smooth, plug‑and‑play experience. Setup is quick—just install the resin vat and level the build plate to start printing within minutes. The device is generally well-constructed: dual linear rails ensure stability, though some users note that leveling may feel fiddly due to the plate design.
Support for a wide range of 405 nm resins—including the complete range of Liqcreate 3D-printing resins—adds versatility. The mono‑LCD’s durability is a bonus, offering more than 2,000 hours of life, reducing maintenance concerns . Contact us if you need support or have any questions. Chitubox settings / 3D-printing parameters can be downloaded here and imported in your Chitubox with one click to get all Liqcreate parameters at once for this printer.
Phrozen sonic mighty 4K resin 3D-printing parameters
| Resin | Layer thickness | Exposure time (seconds) | Base layer count | Base layer exposure | Lift Height | Off-time / bottom layer | Lift speed / retract speed |
| Strong-X | 100 µm | 15,0 | 2 | 60 | 8 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 11,0 | 1 | 50 | 8 | 1,0 / 3,0 | 60 / 90 | |
| ESD | 100 µm | 18,0 | 2 | 40 | 8 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 16,0 | 2 | 35 | 8 | 1,0 / 3,0 | 60 / 90 | |
| Flexible-X | 100 µm | 14,0 | 2 | 90 | 10 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 12,0 | 2 | 85 | 10 | 1,0 / 3,0 | 60 / 90 | |
| Elastomer-X | 100 µm regular | 22 | 2 | 60 | 10 | 2,0 / 2,0 | 60 / 90 |
| 50 µm regular | 20 | 2 | 50 | 10 | 2,0 / 2,0 | 60 / 90 | |
| 100 µm thin | 26 | 2 | 60 | 10 | 2,0 / 2,0 | 60 / 90 | |
| 50 µm thin | 23 | 2 | 50 | 10 | 2,0 / 2,0 | 60 / 90 | |
| Deep Blue | 100 µm | 12,0 | 2 | 50 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 10,0 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Stone Coal Black | 100 µm | 11,0 | 2 | 50 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 9,0 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium White | 100 µm | 5,5 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 4,1 | 6 | 30 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium Black | 100 µm | 6,5 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 5,1 | 6 | 30 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium Model | 100 µm | 5,0 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 4,1 | 6 | 30 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium Tough | 100 µm | 6,5 | 6 | 20 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 5,5 | 6 | 20 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Wax Castable | 100 µm | 6,0 | 2 | 40 | 8 | 1,0 / 1,0 | 90 / 120 |
| 50 µm | 5,0 | 2 | 30 | 8 | 1,0 / 1,0 | 90 / 120 | |
| 35 µm | 4,0 | 2 | 25 | 8 | 1,0 / 1,0 | 90 / 120 | |
| Premium Flex | 100 µm | 5,0 | 2 | 40 | 10 | 2,0 / 2,0 | 60 / 90 |
| 50 µm | 4,0 | 2 | 30 | 10 | 2,0 / 2,0 | 60 / 90 | |
| Clear Impact | 100 µm | 16,0 | 2 | 60 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 14,0 | 2 | 50 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Tough-X | 100 µm | 17,0 | 2 | 60 | 10 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 15,0 | 2 | 50 | 10 | 1,0 / 3,0 | 60 / 90 | |
| Hazard Glow | 100 µm | 13,0 | 2 | 60 | 8 | 2,0 / 2,0 | 90 / 120 |
| Bio-Med Clear | 100 µm | 9,0 | 2 | 45 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 7,0 | 2 | 40 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Composite-X | 100 µm | 9,0 | 2 | 60 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 7,0 | 2 | 50 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Dental Model Pro Beige | 100 µm | 7,5 | 2 | 65 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 5,5 | 2 | 70 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Dental Model Pro Grey | 100 µm | 7,5 | 2 | 65 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 5,5 | 2 | 70 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Gingiva Mask | 100 µm | 16,0 | 2 | 30 | 10 | 2,0 / 3,0 | 60 / 60 |
| 50 µm | 14,0 | 2 | 25 | 10 | 2,0 / 3,0 | 60 / 60 |
*all profiles used 6 transition layers, except otherwise noted.
Find Phrozen Sonic compatible resin
About the Phrozen Sonic Mighty 4K resin 3D-printer.
With an extended printing area of 9.3″ and a 22cm Z-axis, the Phrozen Sonic Mighty 4K resin 3D-printer empowers makers to print larger and more ambitious builds that match your exact designs. But that’s not all. Sonic Mighty 4K prints models in 4K quality, offers high-resolution printing at 52µm, and brings your most ambitious creations to life with crazy detail.

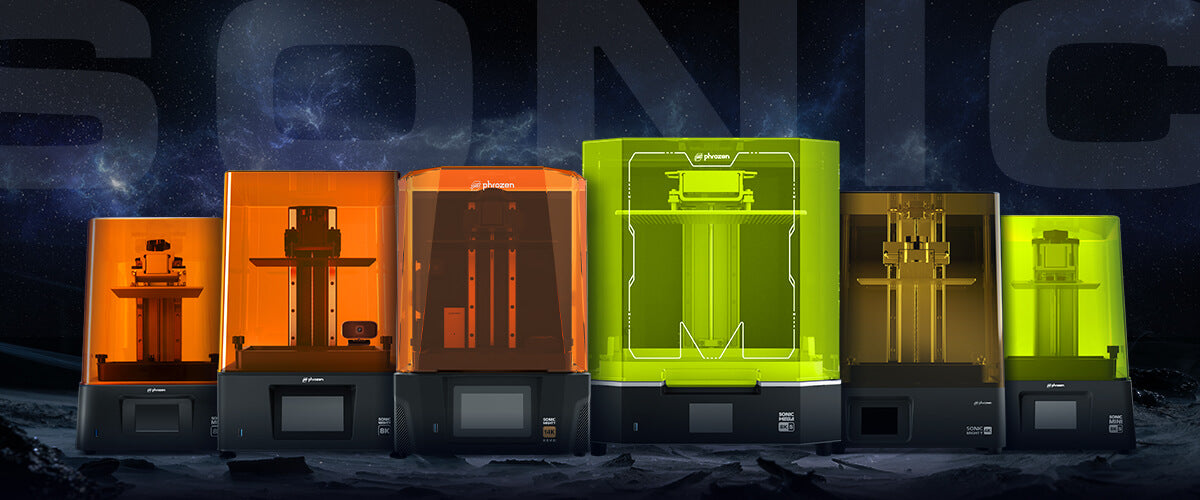

Image by Phrozen3D: The Phrozen resin 3D-printer line-up with on the left the Phrozen Sonic Mighty 4K resin 3D-printer.
Phrozen Sonic Mighty 4K resin 3D-printer specifications.
- – System: Phrozen OS
- – Operation: 2.8in Touch Panel
- – Slicer Software: CHITUBOX
- – Connectivity: USB
- – Technology: Resin 3D Printer – LCD Type
- – LCD Specification: 9.3″ 4K Mono LCD
- – Light Source: 405nm ParaLED Matrix 2.0
- – XY Resolution: 52 µm
- – Layer Thickness: 0.01-0.30mm
- – Maximum Printing Speed: 80mm/ hour
- – Power Requirement: AC100-240V~50/60Hz
- – Build Volume: 20 x 12.5 x 22 cm
- – Printer Weight: 8 kg
Contact us if you have any questions or when you need help with settings for the Phrozen or other resin based 3D-printers.
