Anycubic, one of the manufacturers of entry-level LCD resin 3D-printers is pushing the boundaries with high resolution LCD’s yet again. Just when all the manufacturers are switching to the larger 8K and 12K resolution LCD screens, Anycubic now announced an 14K resolution resin 3D-printer named the Anycubic Photon Mono M5s Pro. Learn more about the printer specifications, compatible resins and how it compares to other Anycubic printers and its competitors like the Phrozen Sonic Mighty Revo 14K!

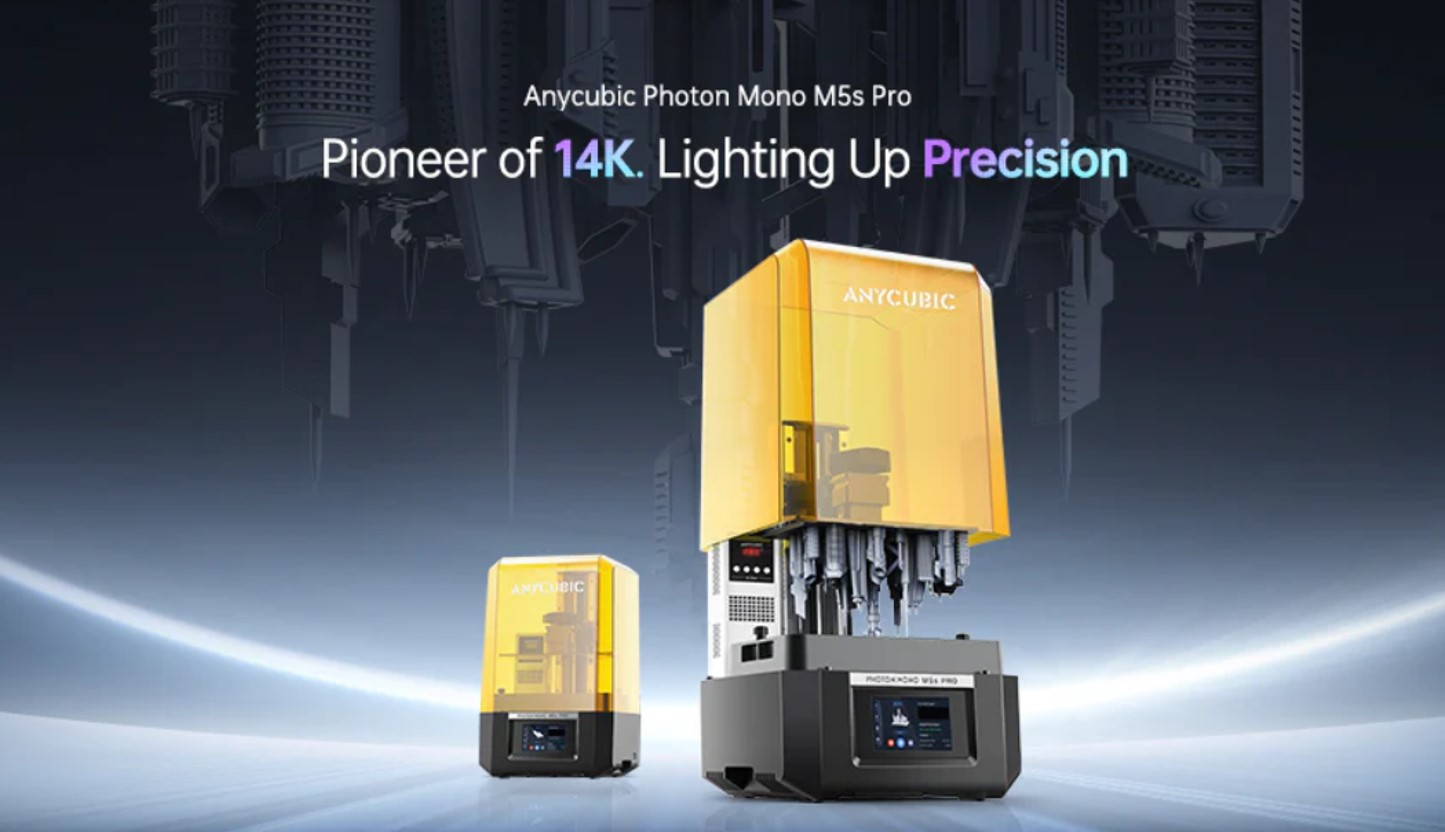

Image by Anycubic: Announcement of their new printer, the Anycubic Photon Mono M5s Pro resin 3D-printers.
Anycubic Photon Mono M5s Pro resin 3D-printer specifications
Anycubic Photon Mono M5s Pro is a resin 3D printer with high details due to its 10.1″ 14K Monochrome LCD screen. The printer is embedded with an air heater and air purifier module to stabilize the printing process and clean air. Although the purifier is not needed for most Liqcreate resins, other resins can have a bad odor!
- – 10.1″ Monochrome LCD Screen similar to the Anycubic Photon M5s
- – High details 14K- 10.1-inch monochrome LCD screen with a resolution of 13312*5120. this gives a non-square pixel size of 16.8 x 24.8μm, slightly smaller compared to the Photon M5s with a pixel size of 19×24.8 micron.
- – Air heater and Purifier – the newly added module integrates air heating with purification.
- – Supports air heating ensuring the air temperature up to 40 ℃ and keeps the resin temperature reach above 20 ℃ before printing for achieving successful printing even in low-temperature environments.
- – leveling free and ready to use with a new leveling-free solution that through the floating platform technology and internal sensors. Although it should be noted that we ran into issues with some M5s printers in the field were leveling issues occured and that high-viscous engineering resins can;t be leveled that well on their previous printer. yet to be discovered if it is improved in the new M5s Pro 14K resin 3D-printer.
Anycubic Photon Mono M5s Pro resin 3D-printer comparison.
Comparing the Anycubic Photon Mono M5s , the M5s pro and Phrozen’s new Sonic Mighty Revo 14K. the differences are minimal.
| Specifications | Anycubic Photon Mono M5s | Anycubic Photon Mono M5s Pro | Phrozen Sonic Mighty Revo |
| Build volume | 218 x 123 x 200mm | 223 x 126 x 200 mm | 223 x 126 x 235 mm |
| LCD size | 10.1″ monochrome screen | 10.1″ monochrome screen | 10.1″ monochrome screen |
| LCD resolution | 12K | 14K | 14K |
| LCD resolution | 11520 x 5120 pixels | 13312 x 5120 pixels | 13312 x 5120 pixels |
| XY resolution | 19 × 24 micron | 16,8 × 24,8 micron | 16,8 x 24 micron |
| Bed leveling | Auto-leveling | Auto-leveling | Auto-leveling |
| Heater | No | Yes | Yes |
| Air purifier | Optional | Yes | Yes |
Resin compatibility with the Anycubic Photon Mono M5s Pro resin 3D-printer.
Check if settings for the Anycubic Photon M5s Pro resin 3D-printer are available in the link or send an e-mail to info@liqcreate.com for more information. Team Liqcreate wish you happy printing for the lucky people who get their hands on an Anycubic Photon M5s Pro 14K resin 3D-printer. If there are any questions or remarks, feel free to contact us at info@liqcreate.com any time.
