3D-printing parameters for Liqcreate resins for Creality LD-002H

The Creality LD-002H 2K Monochrome LCD/MSLA 3D-printer is an open printer with a 405 nm light source. The Creality LD-002H is completely open for 3rd party resins. Due to its monochrome screen, even our DLP and SLA resins can be printed with relatively reasonable printing speed. Some resins have been optimized. Most other resins could also work on this printer, however, not all pre-settings are available. Contact us if you need support or have any questions.



Contact us



Resin Layer thickness Curing time (seconds) Remark
Composite-X 100 µm 4,0 2 base layers of 60 seconds
Premium Black 100 µm
50 µm 2,0 2 base layers of 60 seconds
Deep Blue 100 µm
50 µm
Stone Coal Black 100 µm
50 µm
Premium White 100 µm
50 µm 2,1 6 base layers of 60 seconds
Premium Model 100 µm
50 µm
Premium Flex 100 µm
50 µm
Premium Tough 100 µm
50 µm
Clear Impact 100 µm
50 µm
Strong-X 100 µm
50 µm
Tough-X 100 µm
50 µm
Flexible-X 100 µm
50 µm
Hazard Glow 100 µm



About the Creality LD-002H resin 3D-printer

Creality LD-002H and Creality LD-002R resin LD002H 3Dprinting LD002R

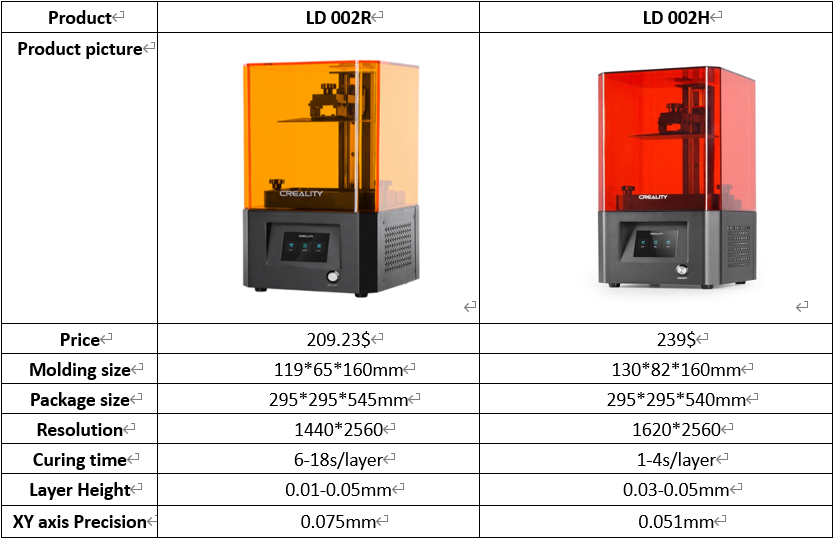

Image by Creality: The Creality LD-002H and Creality LD-002R resin 3D-printer



Technical Specifications of the Creality LD-002H Resin 3D Printer

Technology: Monochrome LCD

Print Size: 130x82x160mm

Creality LD-002H Resin 3D Printer Hardware

Screen: 3.5-inch touch screen

Machine Size: 221x221x403mm

Package Size: 295x295x540mm

Machine Weight: 8.3KG

Creality LD-002H Resin 3D Printer Hardware

Layer Height: 0.03-0.05mm

XY axis Precision: 0.051mm
