Cubicon Lux and Cubicon HD compatible Liqcreate resin & settings

The Cubicon Lux & Lux HD are a high-end DLP 3D-printers and completely open to 3rd party resins. Initial testing has been done with Liqcreate Deep Blue resin which lead to the settings shown below. Due to the curing nature of the other resins, a preliminary setting has been released as a starting point for further optimization. Contact us if you have any questions.

Contact us



Resin Layer thickness Settings Remark
Deep Blue 100 µm 5,5 seconds Layer settings below
Stone Coal Black 100 µm 8 seconds Preliminary setting
Premium White 100 µm
Premium Black 100 µm
Premium Model 100 µm
Clear Impact 100 µm 8 seconds Preliminary setting
Strong-X 100 µm 8 seconds
Tough-X 100 µm
Hazard Glow 100 µm 8 seconds Preliminary setting

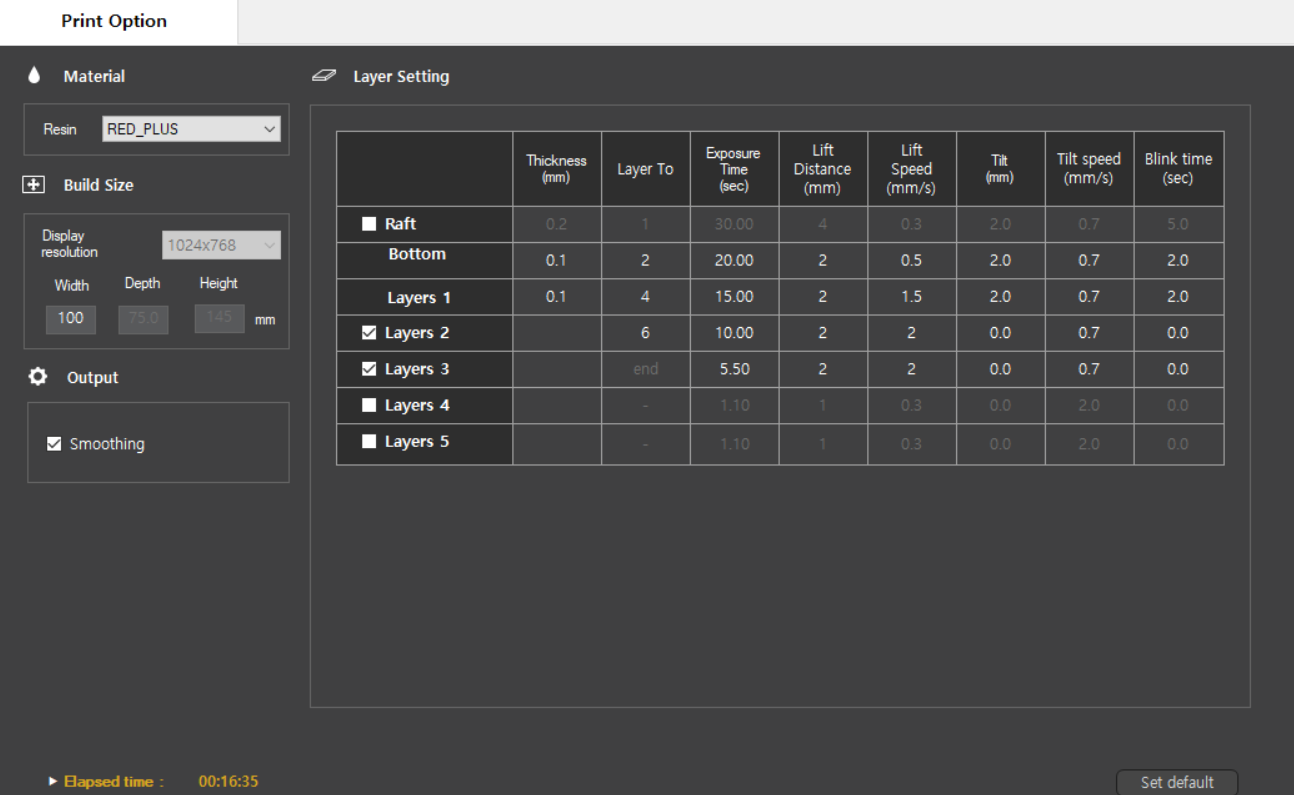

Printing settings Cubicon Lux & Lux HD

printer settings cubicon lux & lux HD for Liqcreate resins

Support

Do you need any help with 3D printing our SLA, DLP or LCD resins? We can help you! Just look for the question you have below. If you can’t find it, let us know by contacting us!

Printer Settings →

About the Cubicon Lux and Cubicon HD resin 3D-printers

cubicon lux cubicon hd resin 3d-printer resins 3dprinter engineering photopolymers
Image by Cubicon: The Cubicon Lux resin 3D-printer



Cubicon Lux and Cubicon HD resin 3D-printers specifications

The Cubicon Lux is a professional DLP 3D Printer with a unique design. A DLP 3D Printer is particularly suitable when a very smooth surface and/or very high detailing of the product is required. Applications can be found in the dental environment and in jewelry design, but also in a mechanical engineering environment.

Technical Specifications:
– Technique: Digital Light Processing (DLP)
– Build volume: 100 x 75 x 145 mm
– Resolution: 1024 x 768 HD
– Layer thickness: 20 ~ 100 m
– Dimensions: 310 x 485 x 460 mm
– Weight: 16 Kg
