Support > Printer Settings

Shining3D AccuFab-L4D & AccuFab-L4K compatible resin & parameters

At Formnext , Shining3D launched the AccuFab-L4D for dental applications and AccuFab-L4K for engineering customers. Both Shining3D AccuFab printers are equipped with a 4K monochrome LCD screen. The 4K resolution of 3840×2400 pixels is covering a build size of 192 * 120 mm, resulting in a 0,05mm pixel size. The Shining3D AccuFab-L4D and AccuFab-L4K stand out with the large printing platform in relation to its compact body structure and ultra-light weight. With AccuFab-L4D you can easily get started in the efficient manufacturing of all kinds of 3D prints at large scale for dental applications. Both printers are powered by 405nm LED’s of 3 mw/cm2 , resulting in a good print speed. Liqcreate engineers have worked with Shining3D to get all Liqcreate resins optimized on the Shining3D AccuFab-L4K and AccuFab-L4D.



Shining3D AccuFab-L4K and AccuFab-L4D resin 3D-printing parameters.

Resin Layer thickness Parameters available in AccuFab Software?
Deep Blue 100 µm  Yes
50 µm  Yes
Stone Coal Black 100 µm  Yes
50 µm  Yes
Premium White 100 µm Yes
50 µm Yes
Premium Black 100 µm Yes
50 µm Yes
Premium Model 100 µm Yes
50 µm Yes
Premium Tough 100 µm Yes
50 µm Yes
Wax Castable 100 µm Yes
50 µm Yes
Premium Flex 100 µm Yes
50 µm Yes
Clear Impact 100 µm Yes
50 µm Yes
Strong-X 100 µm  Yes
50 µm  Yes
Tough-X 100 µm Yes
50 µm Yes
Flexible-X 100 µm Yes
50 µm Yes
Hazard Glow 100 µm Yes
Composite-X 100 µm Yes
50 µm Yes
Dental Model Pro Beige 100 µm Yes
50 µm Yes
Dental Model Pro Grey 100 µm Yes
50 µm Yes
Gingiva Mask 100 µm Yes
50 µm Yes



Order Shining AccuFab compatible resin



About the Shining3D AccuFab-L4K and AccuFab-L4D

Shining3D launches new AccuFab-L4K and L4D resin 3D-printer for engineering and dental applications.

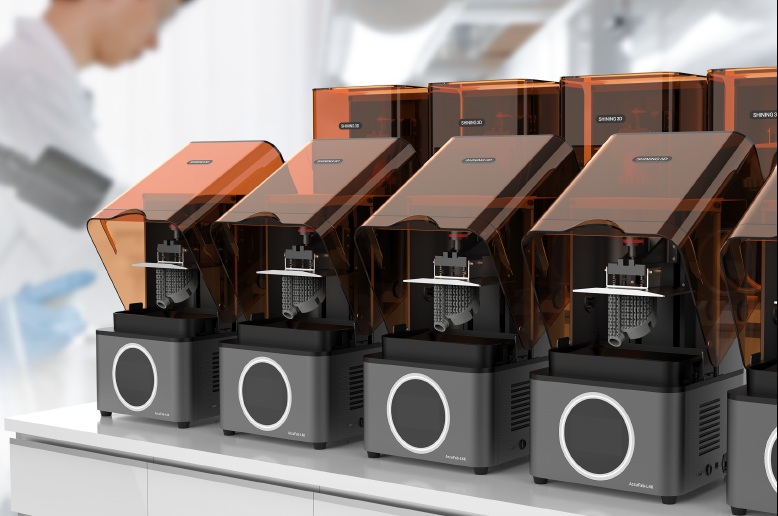

Image by Shining3D and 3Dprintingindustry.com: The new Shining3D AccuFab-L4K and AccuFab-L4D resin 3D-printers



Shining3D AccuFab-L4K and AccuFab-L4D resin 3D-printer specifications.

Resolution 3840*2400 pixels
Pixel Size 0.05 mm / 50 micron
Wavelength 405 nm
Light Intensity >3 mw/cm^2
Print Volume (W x D x H) 192*120*180 mm
Print Speed 10~50 mm/h (material dependant)
Print Accuracy* ±0.05 mm
Layer Thickness 0.025/0.05/0.075/0.1 mm (material dependant)
Printer Dimensions 360*360*530 mm
Weight 19 kg
Power Requirements 110-240 VAC 50/60 Hz 360 W
Connectivity USB dongle, Wi-Fi, Ethernet
Packing Dimensions 480*480*660 mm
Packing Weight 25 kg



Contact us if you have any questions or when you need help with settings for the Shining3D AccuFab-L4K and AccuFab-L4D or other resin based 3D-printers.
