The Phrozen Sonic Mighty 4K LCD / MSLA 3D-printer is a monochrome 3d-printer with a 405 nm light source, compatible with 3rd party resin. The following settings are optimized for Liqcreate resin. In most cases the settings from the Phrozen Sonic Mini 4K work on the Phrozen Sonic Mighty 4K as well. These settings are published here. Contact us if you need support or have any questions.
Chitubox settings / 3D-printing parameters can be downloaded here and imported in your Chitubox with one click to get all Liqcreate parameters at once for this printer.
Phrozen sonic mighty 4K resin 3D-printing parameters
| Resin | Layer thickness | Exposure time (seconds) | Base layer count | Base layer exposure | Lift Height | Off-time / bottom layer | Lift speed / retract speed |
| Strong-X | 100 µm | 15,0 | 2 | 60 | 8 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 11,0 | 1 | 50 | 8 | 1,0 / 3,0 | 60 / 90 | |
| ESD | 100 µm | 18,0 | 2 | 40 | 8 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 16,0 | 2 | 35 | 8 | 1,0 / 3,0 | 60 / 90 | |
| Flexible-X | 100 µm | 14,0 | 2 | 90 | 10 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 12,0 | 2 | 85 | 10 | 1,0 / 3,0 | 60 / 90 | |
| Elastomer-X | 100 µm regular | 22 | 2 | 60 | 10 | 2,0 / 2,0 | 60 / 90 |
| 50 µm regular | 20 | 2 | 50 | 10 | 2,0 / 2,0 | 60 / 90 | |
| 100 µm thin | 26 | 2 | 60 | 10 | 2,0 / 2,0 | 60 / 90 | |
| 50 µm thin | 23 | 2 | 50 | 10 | 2,0 / 2,0 | 60 / 90 | |
| Deep Blue | 100 µm | 12,0 | 2 | 50 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 10,0 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Stone Coal Black | 100 µm | 11,0 | 2 | 50 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 9,0 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium White | 100 µm | 5,5 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 4,1 | 6 | 30 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium Black | 100 µm | 6,5 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 5,1 | 6 | 30 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium Model | 100 µm | 5,0 | 2 | 40 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 4,1 | 6 | 30 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Premium Tough | 100 µm | 6,5 | 6 | 20 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 5,5 | 6 | 20 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Wax Castable | 100 µm | 6,0 | 2 | 40 | 8 | 1,0 / 1,0 | 90 / 120 |
| 50 µm | 5,0 | 2 | 30 | 8 | 1,0 / 1,0 | 90 / 120 | |
| 35 µm | 4,0 | 2 | 25 | 8 | 1,0 / 1,0 | 90 / 120 | |
| Premium Flex | 100 µm | 5,0 | 2 | 40 | 10 | 2,0 / 2,0 | 60 / 90 |
| 50 µm | 4,0 | 2 | 30 | 10 | 2,0 / 2,0 | 60 / 90 | |
| Clear Impact | 100 µm | 16,0 | 2 | 60 | 8 | 1,0 / 3,0 | 90 / 150 |
| 50 µm | 14,0 | 2 | 50 | 8 | 1,0 / 3,0 | 90 / 150 | |
| Tough-X | 100 µm | 17,0 | 2 | 60 | 10 | 1,0 / 3,0 | 60 / 90 |
| 50 µm | 15,0 | 2 | 50 | 10 | 1,0 / 3,0 | 60 / 90 | |
| Hazard Glow | 100 µm | 13,0 | 2 | 60 | 8 | 2,0 / 2,0 | 90 / 120 |
| Bio-Med Clear | 100 µm | 9,0 | 2 | 45 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 7,0 | 2 | 40 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Composite-X | 100 µm | 9,0 | 2 | 60 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 7,0 | 2 | 50 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Dental Model Pro Beige | 100 µm | 7,5 | 2 | 65 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 5,5 | 2 | 70 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Dental Model Pro Grey | 100 µm | 7,5 | 2 | 65 | 8 | 2,0 / 2,0 | 90 / 120 |
| 50 µm | 5,5 | 2 | 70 | 8 | 2,0 / 2,0 | 90 / 120 | |
| Gingiva Mask | 100 µm | 16,0 | 2 | 30 | 10 | 2,0 / 3,0 | 60 / 60 |
| 50 µm | 14,0 | 2 | 25 | 10 | 2,0 / 3,0 | 60 / 60 |
*all profiles used 6 transition layers, except otherwise noted.
Find Phrozen Sonic compatible resin
About the Phrozen sonic mighty 4K resin 3D-printer.
With an extended printing area of 9.3″ and a 22cm Z-axis, the Phrozen Sonic Mighty 4K empowers makers to print larger and more ambitious builds that match your exact designs. But that’s not all. Sonic Mighty 4K prints models in 4K quality, offers high-resolution printing at 52µm, and brings your most ambitious creations to life with crazy detail.

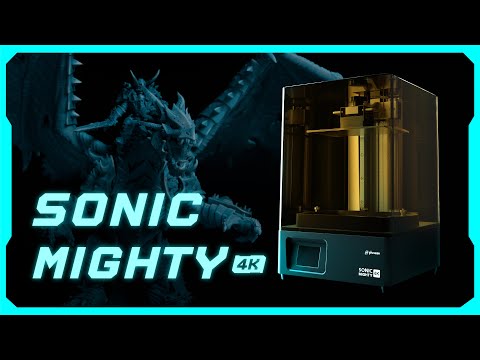

Image by Phrozen3D: The Phrozen Sonic Mighty 4K resin 3D-printer.
Phrozen Sonic Mighty 4K resin 3D-printer specifications.
- – System: Phrozen OS
- – Operation: 2.8in Touch Panel
- – Slicer Software: CHITUBOX
- – Connectivity: USB
- – Technology: Resin 3D Printer – LCD Type
- – LCD Specification: 9.3″ 4K Mono LCD
- – Light Source: 405nm ParaLED Matrix 2.0
- – XY Resolution: 52 µm
- – Layer Thickness: 0.01-0.30mm
- – Maximum Printing Speed: 80mm/ hour
- – Power Requirement: AC100-240V~50/60Hz
- – Build Volume: 20 x 12.5 x 22 cm
- – Printer Weight: 8 kg
Contact us if you have any questions or when you need help with settings for the Phrozen or other resin based 3D-printers.
