Specifications of the Creality Halot-Ray – 6K resin 3D-printers

Founded in 2014, Creality focuses on the design, research, production of 3D printers and 3D printing related products. Consisting of professional researchers and skilled engineers, their R&D team strives for creative function and excellent user experience. The company’s R&D investments on 3d printing cover FDM/resin 3D printers, 3D scanners, filaments, resin, as well as 3D printed drones and robots that back up STEAM education. After their first steps into resin 3D-printing with the Creality LD-002R/H and the first Halot series, Creality is now catching up quickly by bringing the Halot-Ray, 6K MSLA / LCD resin 3D-printer to the market. their newest 8K monochrome LCD printers will soon be available under the name Halot-Mage Pro 8K and Halot-Mage 8K.

Creality Halot-Ray 6K resin 3D-printing technology

HALOT-Ray features a large LCD screen for  a198×123×210mm build volume, larger compared to the 4K resin LCD series.

creality halot-ray 6k LCD MSLA resin photopolymer material liqcreate jewelry resina epoxy harz hars technology dental engineering flex tough strong elastic elastomer fast

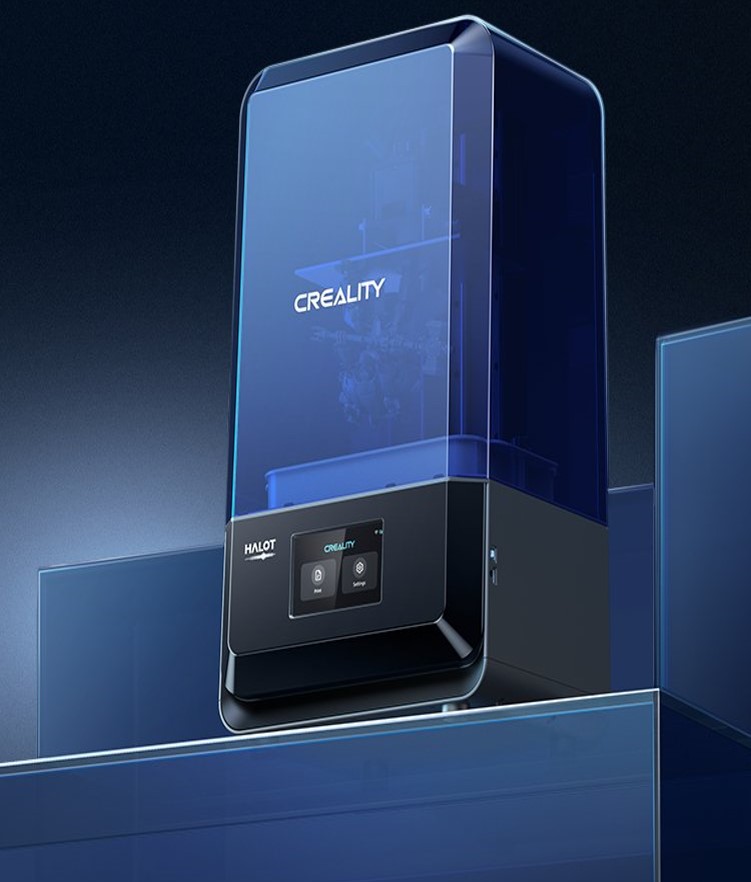

Image by Creality: the new Creality Halot-Ray resin 3D-printers


Creality Halot-Ray resin 3D-printer specifications

The available technical specifications and differences between the two printers are listed below.

  Creality Halot-Ray 6K Creality Halot-Mage Pro 8K
LCD type 6K monochrome 8K monochrome
Pixels 5760 * 3600 7680 * 4320
Print size (L x W x H) 198*123*210 228*128*230
Pixel size 34,4 micron 29,7 micron
Light intensity n/a 8mW/cm2*


Resin compatibility with the Creality Halot-Ray 6K.

At the time of writing we do not have settings for the Creality Halot-Ray 6K printer with our resins. Technically all Liqcreate resins can work. If you want to give it a try, a good starting point are the Creality Halot-Sky parameters. Send an e-mail to if you want to be informed on resin compatibility. For other Creality printers you can find the printing parameters in the links below.

Team Liqcreate wish you happy printing for the lucky people who get their hands on the Creality Halot-Ray 6. If there are any questions or remarks, feel free to contact us at any time.
