Anycubic’s expansion into the large-scale MSLA segment continues with the arrival of the Anycubic Photon Mono M7 Max, a platform designed to bridge large‑format productivity with fine optical precision. For users searching specifically for Anycubic Photon Mono M7 Max resin performance, this printer introduces a new balance of speed, stability, and surface quality that makes resin selection and parameter tuning more important than ever. With its 13.6‑inch 7K monochrome LCD, 298 × 164 × 300 mm build volume, and 46‑micron XY pixel size, the M7 Max targets applications where dimensional accuracy must be maintained across large parts—dental arches, engineering prototypes, functional housings, large miniatures, and production‑grade components. For other Anycubic printers, visit our 3D‑printing parameter overview or see our guides for the Anycubic Photon P1 and Anycubic Photon Mono series.
When the Anycubic Photon Mono M7 Max arrived at the Liqcreate lab in March 2025, the focus was immediately placed on validating exposure consistency across the oversized LCD, and compatibility with the full Liqcreate portfolio. Large‑format MSLA printers often introduce challenges such as uneven curing, peel‑force sensitivity, and resin flow limitations, making verified material settings essential. Early testing showed that the M7 Max’s light engine delivers stable irradiance across the full plate, enabling reliable curing of engineering‑grade Liqcreate resins—including tough, flexible, high‑temperature, and ultra‑rigid formulations—when paired with optimized exposure and lift parameters.
This article provides a detailed overview of Anycubic Photon Mono M7 Max resin compatibility, including exposure baselines, lift profiles, print‑speed considerations, and resin‑specific recommendations derived from Liqcreate’s internal validation. You can also download Chitubox settings for Liqcreate resins for Anycubic Photon Mono M7 Max file for all supported Liqcreate materials to streamline setup and reduce trial‑and‑error. For questions, custom parameters, or assistance with complex applications, the Liqcreate technical team is available at info@liqcreate.com.
Anycubic Photon Mono M7 Max resin settings
The Anycubic Photon Mono M7 Max resin settings in the table below provide a reliable starting point for printing Liqcreate materials with consistent accuracy and mechanical performance across the full build plate.
| Resin | Layer thickness | Exposure time (seconds) | Base layer count | Base layer exposure | Lift Height (mm) | Lift speed / retract speed (mm/min) | Wait time per step |
| Strong-X | 100 µm | 6,5 | 2 | 50 | 6 | 90 / 150 | 2,0 |
| 50 µm | 4,5 | 2 | 50 | 6 | 90 / 150 | 2,0 | |
| Stone Coal Black | 100 µm | 7,0 | 2 | 60 | 6 | 90 / 150 | 2,0 |
| 50 µm | 5,5 | 2 | 50 | 6 | 90 / 150 | 2,0 | |
| Premium White | 100 µm | 3,0 | 2 | 50 | 6 | 90 / 150 | 2,0 |
| 50 µm | 2,0 | 2 | 40 | 6 | 90 / 150 | 2,0 | |
| Premium Black | 100 µm | 4,0 | 2 | 40 | 6 | 90 / 150 | 2,0 |
| 50 µm | 3,0 | 2 | 30 | 6 | 90 / 150 | 2,0 | |
| Premium Model | 100 µm | 3,5 | 2 | 60 | 6 | 90 / 150 | 2,0 |
| 50 µm | 2,0 | 2 | 40 | 6 | 90 / 150 | 2,0 | |
| Premium Tough | 100 µm | 5,5 | 2 | 40 | 6 | 60 / 120 | 2,0 |
| 50 µm | n/a | ||||||
| Wax Castable | 100 µm | 5,0 | 2 | 60 | 6 | 90 / 150 | 2,0 |
| 50 µm | 3,5 | 2 | 50 | 6 | 90 / 150 | 2,0 | |
| 25 µm | 2,5 | 2 | 40 | 6 | 90 / 150 | 2,0 | |
| Premium Flex* | 100 µm | 4,5 | 2 | 40 | 10 | 60 / 120 | 2,0 |
| 50 µm | 3,0 | 2 | 40 | 10 | 60 / 120 | 2,0 | |
| Clear Impact | 100 µm | 8,0 | 2 | 60 | 6 | 90 / 150 | 2,0 |
| 50 µm | 6,5 | 2 | 60 | 6 | 90 / 150 | 2,0 | |
| Deep Blue | 100 µm | 5,0 | 2 | 50 | 6 | 90 / 150 | 2,0 |
| 50 µm | 4,0 | 2 | 50 | 6 | 90 / 150 | 2,0 | |
| ESD | 100 µm | 7,0 | 2 | 70 | 6 | 90 / 150 | 2,0 |
| 50 µm | 6,0 | 2 | 60 | 6 | 90 / 150 | 2,0 | |
| Tough-X* | 100 µm | 10,0 | 2 | 40 | 8 | 90 / 120 | 2,0 |
| 50 µm | 8,0 | 2 | 40 | 8 | 90 / 120 | 2,0 | |
| Flexible-X* | 100 µm | 10,0 | 2 | 50 | 10 | 60 / 90 | 2,0 |
| 50 µm | 8,0 | 2 | 40 | 10 | 60 / 90 | 2,0 | |
| Elastomer-X* | 100 µm | 25,0 | 2 | 80 | 12 | 60 / 90 | 2,0 |
| Hazard Glow | 100 µm | 6,0 | 2 | 50 | 10 | 60 / 90 | 2,0 |
| Composite-X | 100 µm | n/a | |||||
| 50 µm | n/a | ||||||
| Bio-Med Clear | 100 µm | 5,0 | 2 | 50 | 6 | 90 / 150 | 2,0 |
| 50 µm | 3,5 | 2 | 50 | 6 | 90 / 150 | 2,0 | |
| Dental Model Pro Beige | 100 µm | 5,5 | 2 | 80 | 6 | 90 / 150 | 2,0 |
| ** | 50 µm | 4,0 | 2 | 80 | 6 | 90 / 150 | 2,0 |
| Dental Model Pro Grey | 100 µm | 5,5 | 2 | 80 | 6 | 90 / 150 | 2,0 |
| ** | 50 µm | 3,5 | 4 | 50 | 6 | 90 / 150 | 2,0 |
| Gingiva Mask | 100 µm | 10,0 | 2 | 30 | 10 | 60 / 90 | 2,0 |
| 50 µm | 8,0 | 2 | 20 | 10 | 60 / 90 | 2,0 | |
| Separation Model | 100 µm | 5,0 | 2 | 60 | 8 | 60 / 90 | 2,0 |
| 50 µm | 4,0 | 2 | 50 | 8 | 60 / 90 | 2,0 | |
| Flame Retardant HDT | 100 µm | 3,5 | 2 | 50 | 8 | 90 / 120 | 2,0 |
| 50 µm | 2,5 | 2 | 40 | 8 | 90 / 120 | 2,0 | |
| Rigid Pro | 100 µm | 4,0 | 2 | 50 | 6 | 90 / 150 | 2,0 |
| 50 µm | 3,0 | 2 | 40 | 6 | 90 / 150 | 2,0 |
* Tough-X, Flexible-X and Premium flex require heavy supports, Elastomer-X requires extra heavy supports.
** Printed models on supports for best quality and better build plate adhesion.
Find Anycubic compatible resin
About the Anycubic Photon Mono M7 Max resin 3D-printer.
The Anycubic Photon Mono M7 Max resin 3D printer is a powerful addition to Anycubic’s lineup, designed for users who need both large print volume and high-resolution detail. With a massive build size of 330 x 185 x 400 mm, the Photon Mono M7 Max resin printer is ideal for creating large-scale models, intricate miniatures, or multiple parts in a single print. It features a 10.1-inch 14K monochrome LCD screen, allowing for ultra-fine details and faster curing times. The Anycubic Photon Mono M7 Max resin printer also includes an advanced cooling system and supports Anycubic’s automatic resin filling, making long printing sessions more convenient. This printer is compatible with a wide range of 405 nm UV-sensitive resins, including Liqcreate resin, offering flexibility for different applications. Whether you’re a hobbyist, designer, or engineer, the Anycubic Photon Mono M7 Max resin 3D printer delivers consistent, high-quality results for demanding projects, combining speed, volume, and precision in one reliable machine.

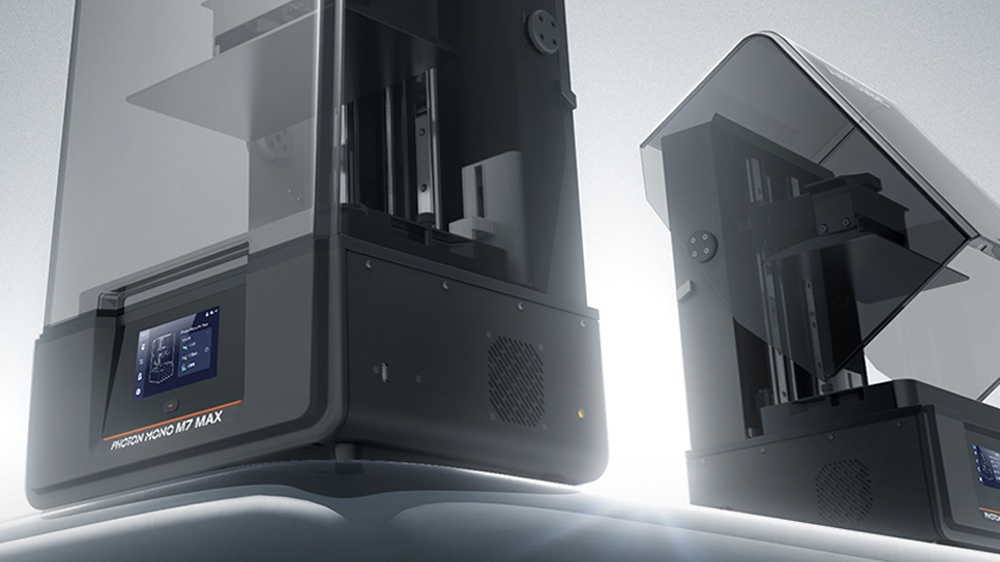

Image by Anycubic: The new Anycubic Photon Mono M7 Max resin 3D-printer.
Anycubic Photon Mono M7 Max resin 3D-printer specifications
| Size | 425 x 362 x 652 mm |
| Weight | 24 kg |
| Build volume | 298 x 164 x 300 mm |
| Print volume | 14.7 L |
| Printing speed (resin dependant) | at 0.05 mm layer height: 31 mm/h at 0.1 mm layer height: 63 mm/h |
| Interfaces | USB Type-A 2.0, WiFi |
| Display | 4.3-inch TFT touch control |
| Rated power | 180 W |
If you have any questions related to Liqcreate 3D-printing resins on the Anycubic Photon Mono M7 Max or other resin based 3D-printer. Send us an e-mail at info@liqcreate.com and our engineers will support with the requested Liqcreate resin.
FAQ
Which Liqcreate resins are compatible with the Anycubic Photon Mono M7 Max? Most Liqcreate resins are compatible with the Anycubic Photon Mono M7 Max, including Strong‑X, Tough‑X, Premium Model, Premium Flex, Clear Impact, ESD, Dental Model Pro, Bio‑Med Clear and other engineering, dental and flexible materials when correct exposure settings are applied.
How do I use these Anycubic Photon Mono M7 Max resin settings? Use the Anycubic Photon Mono M7 Max resin settings in the table as a starting point and fine‑tune exposure time, lift speed and wait time based on part geometry, support strategy and desired surface quality.
Is the Anycubic Photon Mono M7 Max suitable for engineering and flexible resins? Yes, the Anycubic Photon Mono M7 Max performs well with engineering and flexible Liqcreate resins thanks to its strong light engine, stable mechanics and large 7K LCD, provided that heavy or extra‑heavy supports are used where indicated.
Can I use Chitubox profiles for Liqcreate resins on the Anycubic Photon Mono M7 Max? Yes, Chitubox profiles for Liqcreate resins on the Anycubic Photon Mono M7 Max are available and can be used as a baseline to reduce trial‑and‑error when dialing in new materials.
