The Anycubic Photon Mono 4 Ultra resin printer sets a new standard for resin 3D printing. This entry-level resin printer is equipped with an advanced 10K monochrome LCD screen, offering unparalleled print quality with razor-sharp details that satisfy even the most discerning users. Ideal for creative resin 3D printing projects, the Anycubic Photon Mono 4 Ultra resin printer delivers the perfect balance of speed, precision, and durability. Whether you’re a hobbyist or a professional, this high-performance resin printer is designed to enhance your print results. Download the Chitubox parameter file for Anycubic Photon Mono 4 Ultra for Liqcreate resin in the link. With this file you can import all Liqcreate resins in the Chitubox slicer within seconds and start printing right away! Alternatively find the resin printing settings listed below to fill in manually in Chitubox, Lychee or Anycubic workshop.
Liqcreate Resin Compatibility with Anycubic 10K Printers
| Resin | Layer thickness | Exposure time (seconds) | Base layer count | Base layer exposure | Lift Height (mm) | Lift speed / retract speed (mm/min) | Wait time per step |
| Bio-Med Clear | 100 µm | 6,0 | 2 | 50 | 5 | 90 / 150 | 2,0 |
| 50 µm | 4,5 | 2 | 40 | 5 | 90 / 150 | 2,0 | |
| Strong-X | 100 µm | 9,0 | 2 | 50 | 5 | 90 / 150 | 2,0 |
| 50 µm | 7,0 | 2 | 40 | 5 | 90 / 150 | 2,0 | |
| Deep Blue | 100 µm | 6,0 | 2 | 50 | 5 | 90 / 150 | 2,0 |
| 50 µm | 4,0 | 2 | 40 | 5 | 90 / 150 | 2,0 | |
| Premium White | 100 µm | 3,5 | 2 | 25 | 5 | 90 / 150 | 2,0 |
| 50 µm | 2,5 | 2 | 20 | 5 | 90 / 150 | 2,0 | |
| Premium Black | 100 µm | 4,0 | 2 | 25 | 5 | 90 / 120 | 2,0 |
| 50 µm | 3,0 | 2 | 20 | 5 | 90 / 120 | 2,0 | |
| Premium Model | 100 µm | 4,5 | 2 | 20 | 5 | 90 / 150 | 2,0 |
| 50 µm | 3,0 | 2 | 20 | 5 | 90 / 150 | 2,0 | |
| Premium Tough | 100 µm | 6,0 | 2 | 30 | 5 | 90 / 150 | 2,0 |
| 50 µm | 4,0 | 2 | 25 | 5 | 90 / 150 | 2,0 | |
| Wax Castable | 100 µm | 4,5 | 2 | 40 | 5 | 90 / 120 | 2,0 |
| 50 µm | 3,0 | 2 | 30 | 5 | 90 / 120 | 2,0 | |
| 25 µm | 2,5 | 2 | 25 | 5 | 90 / 120 | 2,0 | |
| Premium Flex* | 100 µm | 3,0 | 2 | 20 | 10 | 60 / 120 | 2,0 |
| 50 µm | 2,5 | 2 | 15 | 10 | 60 / 120 | 2,0 | |
| Clear Impact | 100 µm | 8,0 | 2 | 60 | 5 | 90 / 150 | 2,0 |
| 50 µm | 6,0 | 2 | 50 | 5 | 90 / 150 | 2,0 | |
| Stone Coal Black | 100 µm | 7,5 | 2 | 60 | 5 | 90 / 150 | 2,0 |
| 50 µm | 5,5 | 2 | 50 | 5 | 90 / 150 | 2,0 | |
| ESD | 100 µm | 8,0 | 2 | 50 | 5 | 90 / 150 | 2,0 |
| 50 µm | 6,5 | 2 | 40 | 5 | 90 / 150 | 2,0 | |
| Flame Retardant | 100 µm | 4,0 | 2 | 30 | 5 | 90 / 150 | 2,0 |
| HDT | 50 µm | 3,0 | 2 | 30 | 5 | 90 / 150 | 2,0 |
| Tough-X* | 100 µm | 14,0 | 2 | 60 | 8 | 90 / 120 | 2,0 |
| 50 µm | 10,0 | 2 | 50 | 8 | 90 / 120 | 2,0 | |
| Flexible-X* | 100 µm | 12,0 | 2 | 60 | 10 | 60 / 90 | 2,0 |
| 50 µm | 10,0 | 2 | 50 | 10 | 60 / 90 | 2,0 | |
| Elastomer-X* | 100 µm | 12,0 | 2 | 50 | 10 | 60 / 90 | 2,0 |
| 50 µm | 10,0 | 2 | 40 | 10 | 60 / 90 | 2,0 | |
| Hazard Glow | 100 µm | 8,0 | 2 | 60 | 5 | 90 / 150 | 2,0 |
| Composite-X | 100 µm | 7,0 | 2 | 50 | 5 | 90 / 150 | 2,0 |
| 50 µm | 6,0 | 2 | 50 | 5 | 90 / 150 | 2,0 | |
| Dental Model | 100 µm | 5,5 | 2 | 35 | 5 | 90 / 120 | 2,0 |
| Pro Beige | 50 µm | 4,0 | 2 | 25 | 5 | 90 / 120 | 2,0 |
| Dental Model | 100 µm | 5,0 | 2 | 35 | 5 | 90 / 120 | 2,0 |
| Pro Grey | 50 µm | 4,0 | 2 | 30 | 5 | 90 / 120 | 2,0 |
| Gingiva Mask | 100 µm | 10,0 | 2 | 30 | 10 | 60 / 120 | 2,0 |
| 50 µm | 8,0 | 2 | 20 | 10 | 60 / 120 | 2,0 | |
| Rigid Pro | 100 µm | 4,0 | 2 | 25 | 5 | 90 / 120 | 2,0 |
| 50 µm | 3,0 | 2 | 20 | 5 | 90 / 120 | 2,0 |
* Tough-X, Flexible-X and Premium flex require heavy supports, Elastomer-X requires extra heavy supports.
About the Anycubic Photon Mono 4 Ultra – 10K resin 3D-printer.

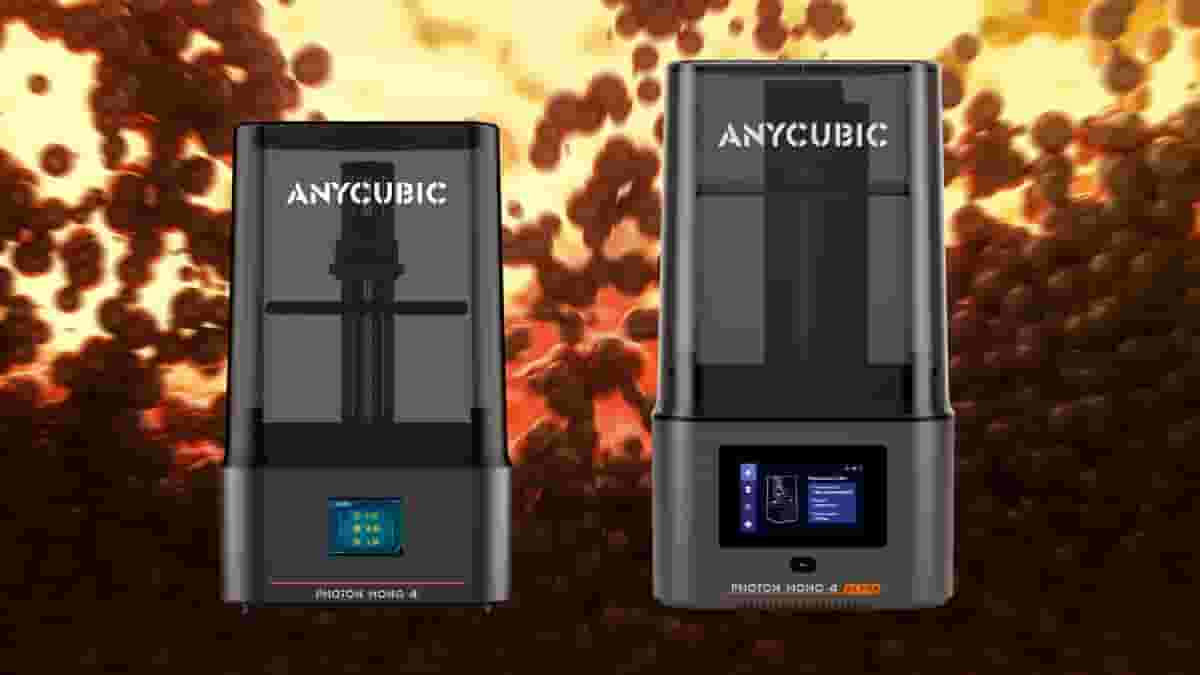

Photo by Anycubic: The new Anycubic Photon Mono 4 Ultra, an entry-level 10K resin 3D-printer
Anycubic Photon Mono 4 Ultra vs Mono 4 resin 3D-printer specifications:
| Feature | Anycubic Photon Mono 4 Ultra Resin | Anycubic Photon Mono 4 |
| Device Size | 231 x 236 x 430 mm | 230 x 235 x 391 mm |
| Device Weight | 5 kg | 4 kg |
| Build Volume | 153.4 x 87 x 165 mm | 130 x 78 x 160 mm |
| Printing Speed (0.1 mm) | Standard Resin: ≤ 80 mm/h High-Speed Resin: ≤ 120 mm/h |
Standard Resin: ≤ 50 mm/h High-Speed Resin: ≤ 70 mm/h |
| Layer Height | 0.02 – 0.15 mm | 0.03 – 0.15 mm |
| LCD Display | 7-inch monochrome LCD | 6.08-inch monochrome LCD |
| Display Resolution | 10K | 4K |
| XY Resolution | 17 x 17 µm | 50 x 50 µm |
| Light Source | COB light source + Fresnel lens + light uniformity | COB light source + Fresnel lens + light uniformity |
| Light Uniformity | ≥ 90% | 80 – 90% |
| Light Intensity | ≥ 3500 μW/cm² | ~3000 μW/cm² |
| Release Film | ACF | FEP |
| Air Purifier | Optional (USB) | Optional (rechargeable) |
| Device Display | 4.3-inch TFT touch | 2.8-inch TFT touch |
| Interface | USB, WiFi, LAN | USB |
| Levelling | Manual 4-point leveling | Manual 4-point leveling |
| Slicer | Photon Workshop | Photon Workshop |
If you have any questions regarding Liqcreate 3D printing resins for the Anycubic Photon Mono 4 Ultra resin printer or other resin-based 3D printers, reach out to us at info@liqcreate.com. Our expert engineers are available to assist with resin compatibility and optimal printing settings for your Anycubic Photon Mono 4 Ultra resin printer.
Find Anycubic Photon Mono 4 Ultra resin.
Are you looking for anycubic photon mono 4 ultra resin that is compatible with the Anycubic printer? take a look at the Liqcreate 3D-printing resins!
Frequently asked questions – FAQ
-
– Q: How do I import the .cfg file into Chitubox?
- A: Download the chitubox file, select the “Anycubic Photon Mono 4 Ultra” in chitubox and click the import button. Now select the downloaded file. In a matter of seconds all compatible Liqcreate resins are listed in Chitubox.
-
– Q: How to import settings for other slicers like Lychee and Photon Workshop?
- A: Contact our technical support team at info@liqcreate.com. Unfortunately we do not have an import link for Lychee or Photon Workshop for Liqcreate resins. It still works, although you have to fill in the parameters by hand. Our technical team can assist with this.
-
– Q: What is the XY resolution of the Photon Mono 4 Ultra?
- A: The Anycubic Photon Mono 4 Ultra has a XY resolution of 17 x 17 µm, meaning every pixel is just 17 micrometer (or 0,017 mm) in X and Y size!
-
– Q: Is a screen protector recommended for the 10K LCD?
- A: A screen protector is recommended for every resin 3D-printer. Even if you are working carefully, a FEP (of FCA, N-FEP, etc) film can leak. The screen protector will prevent damages to the LCD screen underneeth in case this happens.
