The Anycubic Photon M3 Plus resin 3D‑printer is designed for users who need a larger build area without sacrificing optical precision. With its 9.25‑inch 6K monochrome LCD (5760 × 3600 px) and a pixel pitch of roughly 34 µm, the M3 Plus offers a wider XY footprint while maintaining the fine detail reproduction expected from modern MSLA systems. This makes the platform suitable for engineering prototypes, dental models, functional components and small‑series production workflows where both accuracy and throughput matter. For users working across multiple systems, the standard Anycubic Photon M3 resin settings can be found in our dedicated M3 parameter overview.
The upgraded LightTurbo LED array provides a stable and uniform irradiance field across the full 194 × 122 mm build area. This uniformity is essential when working with advanced photopolymers, especially those with higher pigment concentrations or tighter cure‑depth tolerances. Combined with the high UV transmission of the 6K LCD, the M3 Plus delivers predictable polymerization behavior across the full range of Liqcreate materials. If you require settings for larger format machines, see our Anycubic Photon M3 Max resin settings for cross‑system exposure comparison.
Because the M3 Plus operates with a stronger light engine and a larger vat volume than the standard Photon M3, exposure energy, peel forces and resin flow characteristics differ noticeably between materials. Each Liqcreate resin family—tough, flexible, dental, casting, composite and high‑temperature—requires its own exposure strategy to achieve dimensional accuracy and mechanical stability. All validated Liqcreate settings for the Anycubic Photon M3 Plus resin workflow are listed below, based on in‑house testing at the Liqcreate R&D laboratory, or simply download the Chitubox parameter file for the Anycubic Photon M3 Plus. All Liqcreate resin profiles for supported 3D‑printers are available in our complete resin settings database.
Anycubic Photon M3 Plus resin 3D-printing parameters.
The table below lists all validated Liqcreate resin settings for the Anycubic Photon M3 Plus, based on controlled exposure testing and cross‑referenced behavior from comparable 405 nm MSLA systems.
| Layer thickness | % UV Power | Exposure time (seconds) | Base layer count | Base layer exposure | Lift Height | Rest time per step | Lift speed / retract speed | |
| Deep Blue | 100 µm | 100 | 5,0 | 2 | 50 | 6 | 2,0 | 90 / 150 |
| 50 µm | 100 | 4,0 | 2 | 40 | 6 | 2,0 | 90 / 150 | |
| Stone Coal Black | 100 µm | 100 | 6,0 | 2 | 55 | 6 | 2,0 | 90 / 150 |
| 50 µm | 100 | 4,0 | 2 | 40 | 6 | 2,0 | 90 / 150 | |
| Premium White | 100 µm | 40 | 4,8 | 2 | 50 | 6 | 2,0 | 90 / 150 |
| 50 µm | 40 | 2,8 | 2 | 40 | 6 | 2,0 | 90 / 150 | |
| Premium Black | 100 µm | 100 | 3,0 | 2 | 30 | 6 | 2,0 | 90 / 150 |
| 50 µm | 100 | 2,5 | 2 | 25 | 6 | 2,0 | 90 / 150 | |
| Premium Model | 100 µm | 100 | 4,5 | 2 | 30 | 6 | 4,0 | 90 / 150 |
| 50 µm | 100 | 3,5 | 2 | 20 | 6 | 4,0 | 90 / 150 | |
| Premium Tough | 100 µm | 30 | 9,0 | 2 | 25 | 6 | 2,0 | 90 / 150 |
| 50 µm | 30 | 8,0 | 2 | 25 | 6 | 2,0 | 90 / 150 | |
| Wax Castable | 100 µm | 50 | 6,0 | 2 | 30 | 6 | 2,0 | 90 / 150 |
| 50 µm | 50 | 4,0 | 2 | 30 | 6 | 2,0 | 90 / 150 | |
| 35 µm | 50 | 3,5 | 2 | 25 | 6 | 2,0 | 90 / 150 | |
| Premium Flex* | 100 µm | 50 | 5,0 | 3 | 75 | 10 | 2,0 | 60 / 90 |
| 50 µm | 50 | 4,0 | 3 | 70 | 10 | 2,0 | 60 / 90 | |
| Clear Impact | 100 µm | 100 | 7,0 | 2 | 50 | 6 | 2,0 | 90 / 150 |
| 50 µm | 100 | 5,0 | 2 | 40 | 6 | 2,0 | 90 / 150 | |
| Strong-X | 100 µm | 100 | 9,0 | 2 | 55 | 6 | 2,0 | 90 / 150 |
| 50 µm | 100 | 6,0 | 2 | 45 | 6 | 2,0 | 90 / 150 | |
| ESD | 100 µm | 100 | 8,0 | 2 | 50 | 6 | 2,0 | 90 / 150 |
| 50 µm | 100 | 6,0 | 2 | 40 | 6 | 2,0 | 90 / 150 | |
| Flame Retardant HDT | 100 µm | 100 | 4,5 | 1 | 40 | 6 | 2,0 | 90 / 150 |
| 50 µm | 100 | 3,5 | 1 | 35 | 6 | 2,0 | 90 / 150 | |
| Tough-X* | 100 µm | 100 | 12,0 | 2 | 50 | 8 | 2,0 | 90 / 150 |
| 50 µm | 100 | 10,0 | 2 | 40 | 8 | 2,0 | 90 / 150 | |
| Flexible-X* | 100 µm | 100 | 10,0 | 2 | 50 | 10 | 2,0 | 60 / 90 |
| 50 µm | 100 | 8,0 | 2 | 40 | 10 | 2,0 | 60 / 90 | |
| Elastomer-X* | 100 µm regular | 100 | 16,0 | 2 | 60 | 10 | 2,0 | 60 / 90 |
| 100 µm thin | 100 | 20,0 | 2 | 60 | 10 | 2,0 | 60 / 90 | |
| Hazard Glow | 100 µm | 100 | 11,0 | 2 | 60 | 6 | 2,0 | 90 / 150 |
| Composite-X | 100 µm | 50 | 7,5 | 2 | 45 | 6 | 2,0 | 90 / 150 |
| 50 µm | 50 | 6,0 | 2 | 40 | 6 | 2,0 | 90 / 150 | |
| Bio-Med Clear | 100 µm | 100 | 4,0 | 2 | 50 | 6 | 2,0 | 90 / 150 |
| 50 µm | 100 | 3,0 | 2 | 50 | 6 | 2,0 | 90 / 150 | |
| Dental Model Pro Beige | 100 µm | 100 | 5,0 | 2 | 35 | 6 | 2,0 | 90 / 150 |
| 50 µm | 100 | 3,5 | 2 | 30 | 6 | 2,0 | 90 / 150 | |
| Dental Model Pro Grey | 100 µm | 100 | 5,0 | 2 | 45 | 6 | 2,0 | 90 / 150 |
| 50 µm | 100 | 3,5 | 2 | 40 | 6 | 2,0 | 90 / 150 | |
| Gingiva Mask | 100 µm | 100 | 10,0 | 2 | 20 | 10 | 2,0 | 60 / 90 |
| 50 µm | 100 | 8,0 | 2 | 20 | 10 | 2,0 | 60 / 90 | |
| Separation Model | 100 µm | 100 | 5,0 | 1 | 20 | 6 | 2,0 | 90 / 120 |
| 50 µm | 100 | 4,0 | 1 | 10 | 6 | 2,0 | 90 / 120 | |
| Rigid Pro | 100 µm | 100 | 4,5 | 2 | 25 | 6 | 2,0 | 90 / 120 |
| 50 µm | 100 | 3,5 | 2 | 20 | 6 | 2,0 | 90 / 120 |
* Tough-X, Flexible-X and Premium flex require heavy supports, Elastomer-X requires extra heavy supports.
Order Anycubic compatible resin
About Anycubic Photon M3 Plus resin 3D-printer
The Anycubic Photon M3 Plus combines a larger 6K LCD with a stable LightTurbo illumination system, enabling consistent curing performance across its full 197 × 122 mm build area. The printer’s mechanical rigidity, pixel pitch and irradiance uniformity align well with the exposure characteristics of Liqcreate engineering, dental and functional materials. This makes the M3 Plus suitable for users who require a balance between precision, throughput and predictable polymerization behavior.

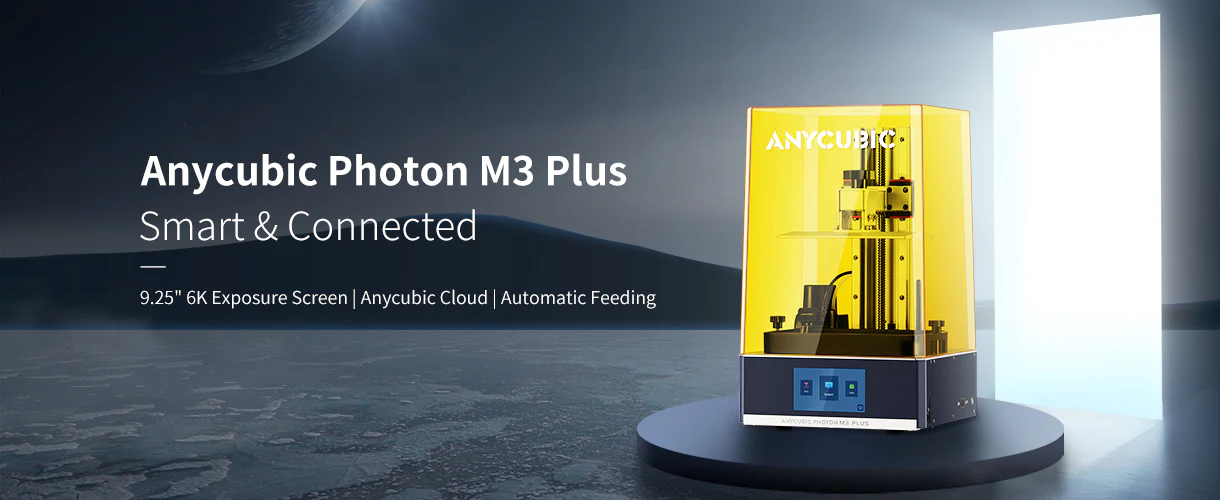

Image by Anycubic: The new Anycubic Photon M3 Plus monochrome resin 3D-printer.
Anycubic Photon M3 Plus 3D-printer specifications
Features:
- – 9.25″ 6K monochrome display
- – Large resin 3D-printer with a build volume: of 197 x 122 x 245 mm
- – Smart resin filling
- – Laser engraved print platform
- – LighTurbo Matrix light source
Technical specifications:
- – 9.25″ 6K monochrome display
- – Large build volume: 197 x 122 x 245 mm (L x W x H)
- – Device size: 290 x 360 x 475 mm (L x W x H)
- – Dimensional accuracy of 34 µm
- – Print speeds of up to 100 mm/h
- – LCD screen with 350:1 contrast
- – Anycubic LighTurbo Matrix light source with LED beads
- – Smart resin filling
- – Laser engraved printing platform
- – Anti-scratch film for LCD screen
Support
Our team can assist with exposure tuning, resin selection and workflow optimization for the Photon M3 Plus. We also help evaluate cross‑printer behavior when switching between different Liqcreate materials.
FAQ – Anycubic Photon M3 Plus resin settings
Why does the M3 Plus require different exposure settings than the standard Photon M3? The M3 Plus uses a stronger LightTurbo LED engine and a larger vat, which influence irradiance distribution, cure depth and peel forces. These differences require resin‑specific exposure tuning.
Are Liqcreate resins fully compatible with the Photon M3 Plus? Yes. All Liqcreate materials are optimized for 385–405 nm curing and are compatible with the M3 Plus optical spectrum. Each resin family requires its own exposure and support strategy.
Does the larger build area affect dimensional accuracy? The 6K LCD maintains a 34 µm pixel pitch, but the increased peel forces of the larger vat may require adjusted lift speeds for flexible or high‑viscosity materials.
Can I transfer settings from the M3 or M3 Max to the M3 Plus? No. Differences in light output, vat size and mechanical behavior mean that settings are not interchangeable between these printers.
How do I troubleshoot over‑exposure on the M3 Plus? Check for surface gloss, dimensional swelling or loss of fine detail. Reduce exposure in small steps and verify that bottom‑layer adhesion remains stable.
